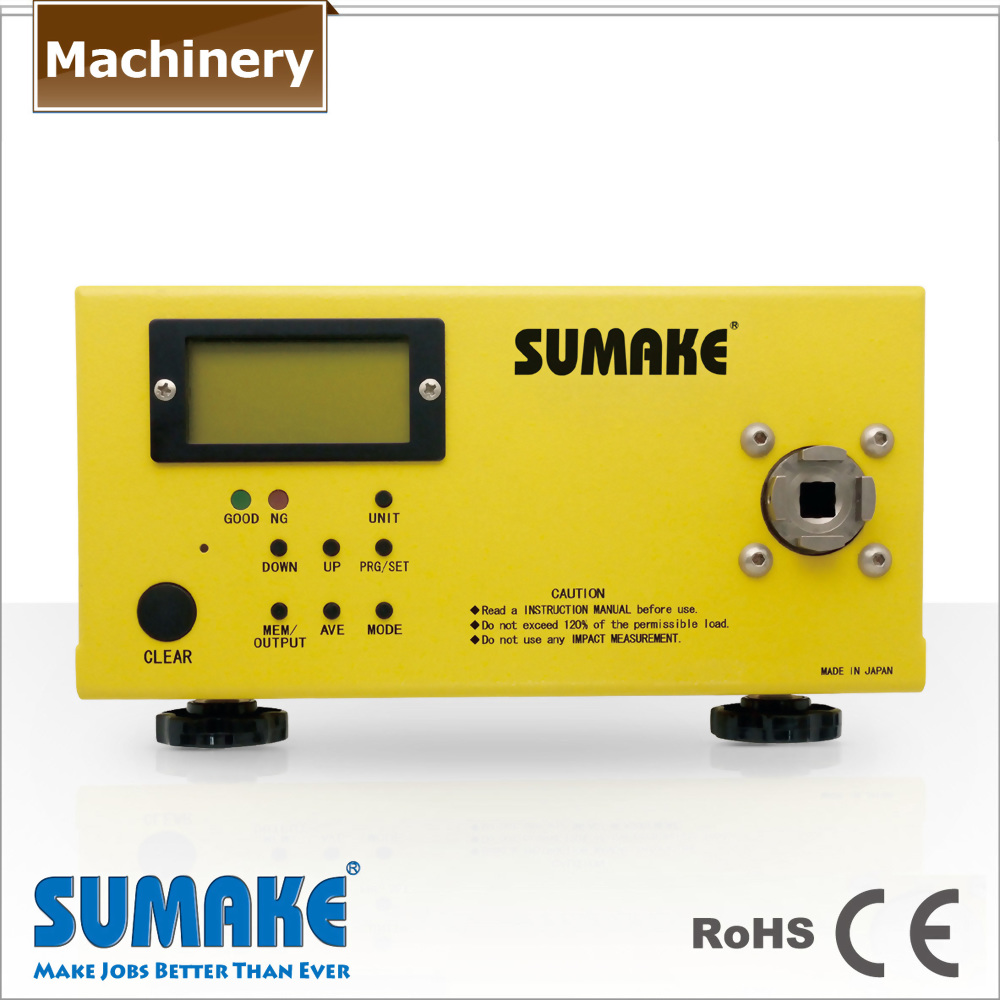

Digital Torque Meters

Model : TM-010;150

Digital Torque Meters

for Air/Electric screwdriver- Auto Shut-off

Model # TM-010  (0.15~10kgf-cm)

Model # TM-150  (1.5~150kgf-cm)


Specification:

Model#

TM-010, TM-100

Measuring Range TM-010

0.15~10kgf-cm/0.015~1Nm

Measuring Range TM-100

1.5~100kgf-cm/0.15~10Nm

Accuracy

± 0.5%

Recharge Time

Within 8 hrs

Power supply

1.2V battery*5

Continuous Operation at full charge

About 30 hours

Battery Life

Rechargeable 300 times

Dimension(WxDxH)

123x230x65 mm

Weight TM-010

1.8 kgs

Weight TM-100

1.9 kgs

Special Charger

AC 120V, 220-240V

DC 12V 500mA



Packing: Standard export carton packing



Features-

* LED can identify the test range of torque set by needed user. If the result is not complying to set torque range; light will be warned.

* USB 1.0 connector is only used for data output; it is convenient for user to work with computer.

* Auto-zero can be selected and zero reset becomes unnecessary for user.

* Automatically test values about maximum and mean.
