  • Digital Torque Tester For Semi-Auto Shut-off  & Cushion Type Electric Screwdriver- 0.05~5Nm.

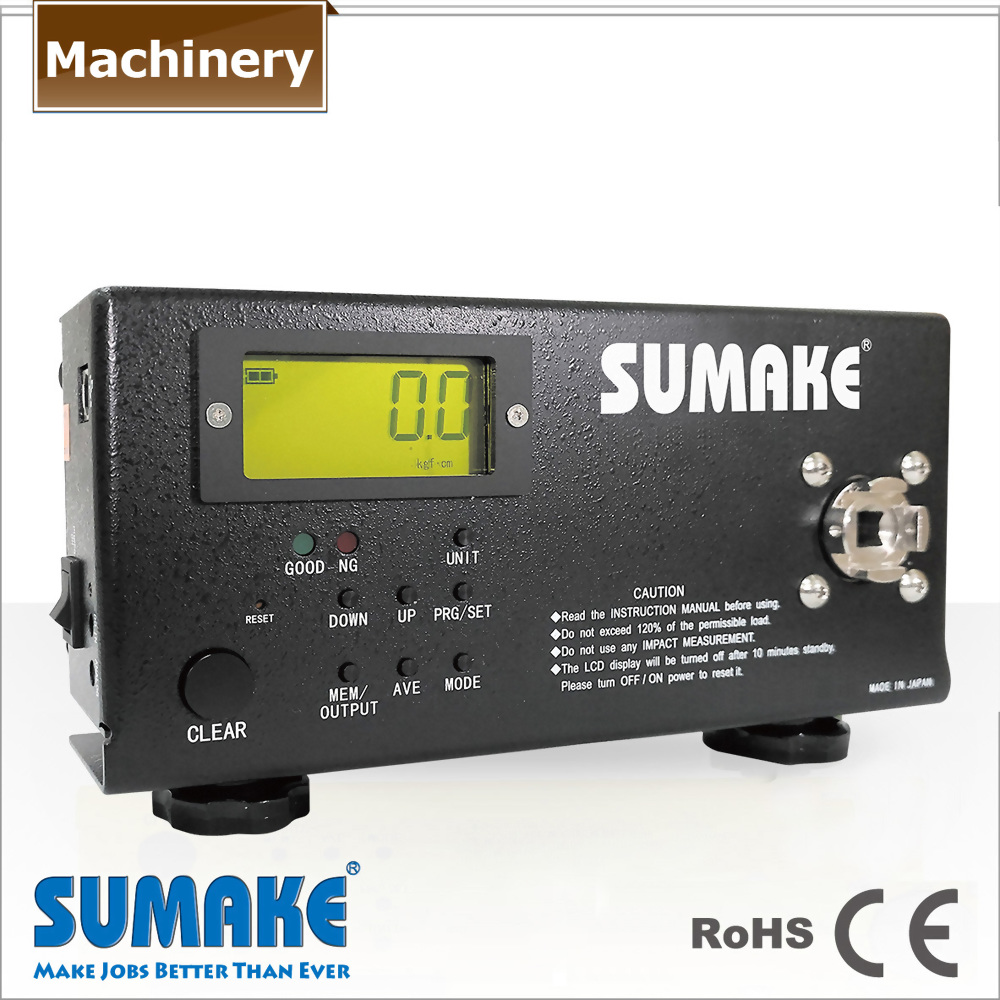

Digital Torque Tester For Semi-Auto Shut-off & Cushion Type Electric Screwdriver- 0.05~5Nm.

Model : TM-S50


● Ideal for clutched torque screwdrivers.
● Comes with Torque Certification, AC Charger, Run Down Nut, and a case.
● User can set min and max test torque ranges and  will be notified if torque reading falls outside of test range.
● USB 1.0 connector allows data output to computer.  (TM-015A,TM-150A)
● Auto-zero option.
● Rechargable Battery.
● Store up 800 readings.
● Available measurement units: lbs-in, kgF-cm, Nm.
● Works in both clockwise and counterclockwise.

Specification:

Model#

TM-S50

Measuring Range

0.5~50kgf-cm/0.049~5 Nm

Accuracy

± 0.5%

Recharge Time

8 hrs

Power supply

1.2V battery*5

Continuous Operation at full charge

About 30 hours

Battery Life

Rechargeable 300 times

Dimension(WxDxH)

123x230x65 mm

Weight

1.9 kgs

Special Charger

AC 90-240V

DC 7.2V 120mA
