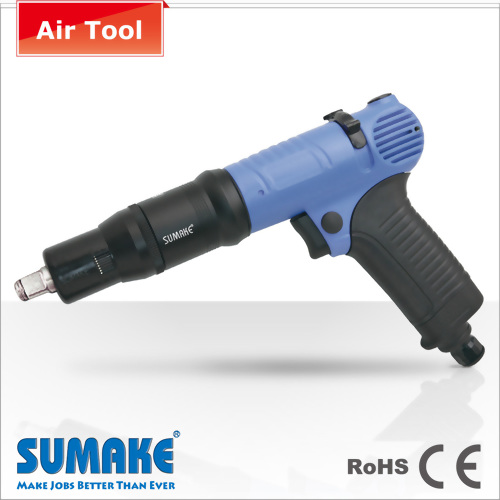

Pistol Type, 0.3-28 N.m
● Accuracy : SUMAKE provide patent clutch with 3% deviation of torque, assure the best quality.
● Light Weight: All new patent mechanical design and grip material 25~44% lighter than other brand.
● Delicacy : Combination of art, ergonomics and mechanical design.
● Standard Body: APP48, APP50, APP55, APP60, APP65, APP68,

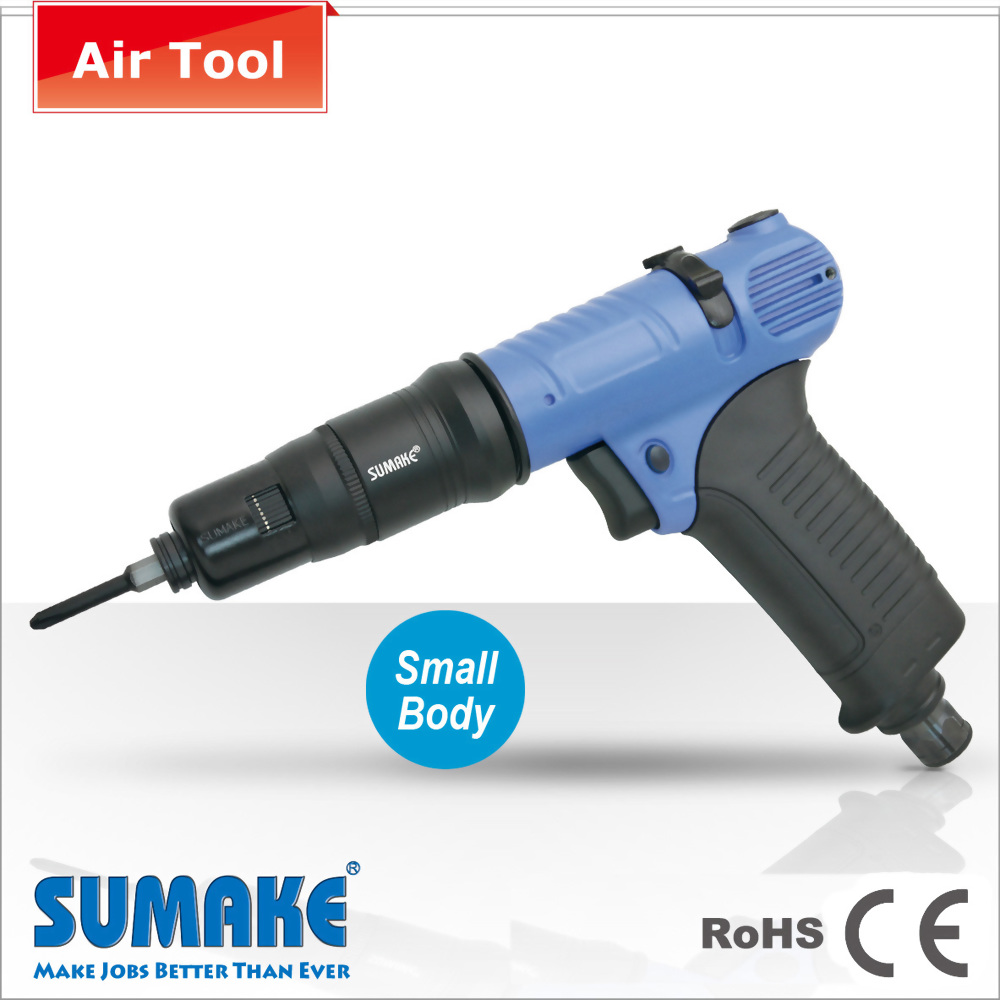

Small body & light weight: APP38, APP41 ,APP47
Pistol Type Shut-off Air Screwdriver-Push Start or Push & Trigger Start
|
Model No. |
Drive |
Free Speed (r.p.m) |
Torque Range ±3% |
Weight (g) |
Dimension Ø x L x H (mm) |
Air Pressure (Kg/cm²) |
Noise (±3dB) |
Min. Air Hose bore(mm) |
Air consumption (m³/min) |
Fastening Capacity |
||
|
N.m |
Kgf-cm |
Machine Screw Dia. |
Tapping Screw Dia. |
|||||||||
|
T |
2T |
|||||||||||
|
APP38 |
F1/4” |
1800 |
0.3-2.5 |
3-25 |
690 |
33x195x150 |
6.0 |
72 |
5.0 |
0.28 |
M2.2-M4.7 |
M1.7-M3.8 |
|
APP41 |
F1/4” |
1000 |
0.5-3.5 |
5-35 |
690 |
33x195x150 |
6.0 |
72 |
5.0 |
0.28 |
M2.8-M5.2 |
M2.2-M4.2 |
|
APP47 |
F1/4” |
550 |
1-5 |
10-50 |
690 |
33x195x150 |
6.0 |
72 |
5.0 |
0.28 |
M3.6-M6.0 |
M2.8-M4.7 |
|
APP48 |
F1/4” |
2200 |
1-6 |
10-60 |
1030 |
39x230x160 |
6.0 |
76 |
8.0 |
0.55 |
M2.9-M6.0 |
M2.6-M4.9 |
|
APP50 |
F1/4” |
1400 |
1-6 |
10-60 |
1030 |
39x230x160 |
6.0 |
76 |
8.0 |
0.55 |
M3.6-M6.2 |
M2.8-M5.1 |
|
APP55 |
F1/4” |
1000 |
1.2-7.5 |
12-75 |
1030 |
39x230x160 |
6.0 |
76 |
8.0 |
0.55 |
M3.8-M6.6 |
M3.0-M5.6 |
|
APP60 |
F1/4” |
550 |
3-11 |
30-110 |
1030 |
39x230x160 |
6.0 |
76 |
8.0 |
0.55 |
M5.0-M7.3 |
M4.0-M6.2 |
|
APP65 |
F1/4” |
300 |
3-18 |
30-180 |
1150 |
39x235x160 |
6.0 |
76 |
8.0 |
0.55 |
M5.0-M9.3 |
M4.0-M7.2 |
|
APP68 |
F1/4” |
250 |
5-28 |
50-280 |
1150 |
39x235x160 |
6.0 |
76 |
8.0 |
0.55 |
M6.0-M11.0 |
M4.9-M8.7 |
*APP38, APP41, APP47: Small Body & Light weight
*APPT is for push-trigger to start(w/o lock pin) Ex.APPT38.
*If Ø5mm, put "A" in the end EX. APP38A
*Standard air inlet direction up bottom only.If need three-direction air inlet up bottom rear,Put"T" in the end EX. APP38T
