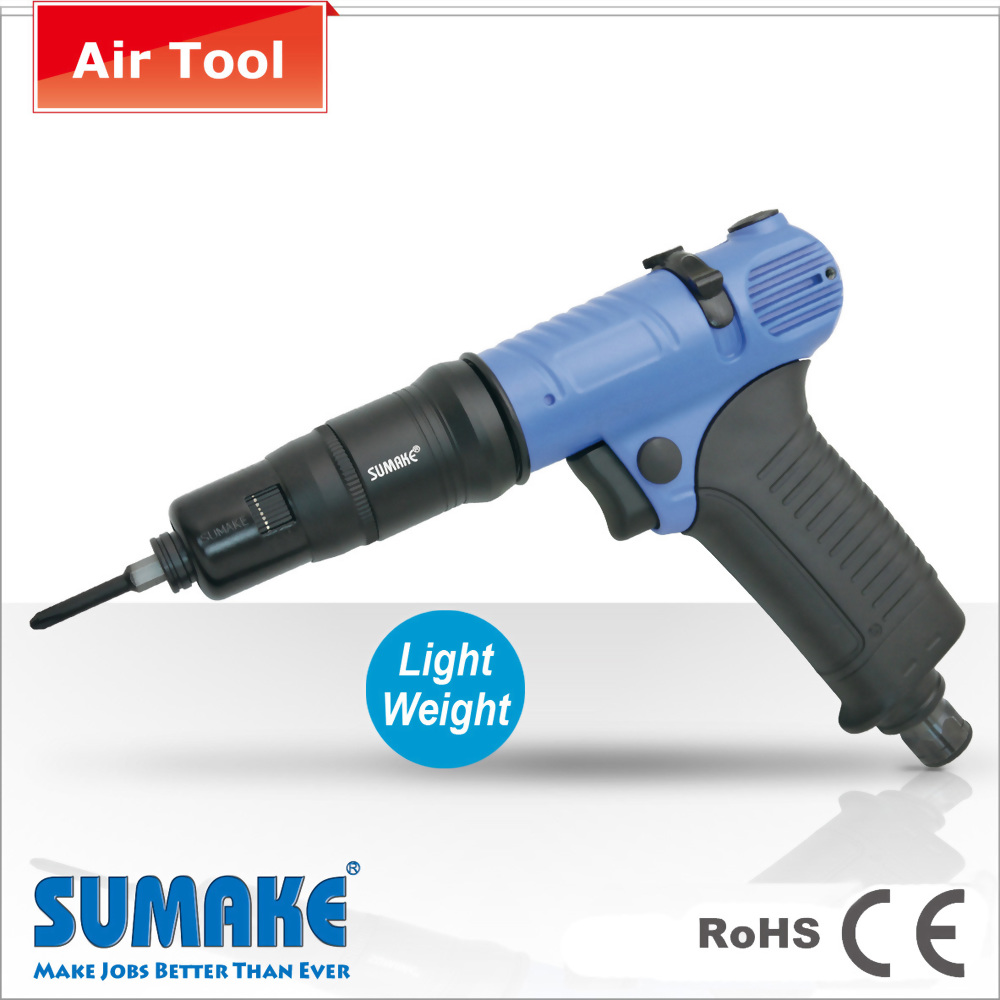

Industrial Pistol Type Shut Off Air Screwdriver- Trigger Start
● Technology : Special mechanical structure and patent motor give you low noise, low vibration and high accuracy.
● Accuracy : SUMAKE provide patent clutch with 3% deviation of torque, assure the best quality.
● Light Weight: All new patent mechanical design and grip material 25~44% lighter than other brand.
● Delicacy : Combination of art, ergonomics and mechanical design.
● Standard Body: ABP48, ABP50, ABP55, ABP60, ABP65, ABP68,
Small body & light weight: ABP38, ABP41 ,ABP47
Industrial Pistol Type Shut Off Air Screwdriver- Trigger Start
|
Model No. |
Drive |
Free Speed (r.p.m) |
Torque Range ±3% |
Weight (g) |
Dimension Ø x L x H (mm) |
Air Pressure (Kg/cm²) |
Noise (±3dB) |
Min. Air Hose bore(mm) |
Air consumption (m³/min) |
Fastening Capacity |
||
|
N.m |
Kgf-cm |
Machine Screw Dia. |
Tapping Screw Dia. |
|||||||||
|
T |
2T |
|||||||||||
|
ABP38 |
F1/4” |
1800 |
0.3-2.5 |
3-25 |
690 |
33x195x150 |
6.0 |
72 |
5.0 |
0.28 |
M2.2-M4.7 |
M1.7-M3.8 |
|
ABP41 |
F1/4” |
1000 |
0.5-3.5 |
5-35 |
690 |
33x195x150 |
6.0 |
72 |
5.0 |
0.28 |
M2.8-M5.2 |
M2.2-M4.2 |
|
ABP47 |
F1/4” |
550 |
1-5 |
10-50 |
690 |
33x195x150 |
6.0 |
72 |
5.0 |
0.28 |
M3.6-M6.0 |
M2.8-M4.7 |
|
ABP48 |
F1/4” |
2200 |
1-6 |
10-60 |
1030 |
39x230x160 |
6.0 |
76 |
8.0 |
0.55 |
M2.9-M6.0 |
M2.6-M4.9 |
|
ABP50 |
F1/4” |
1400 |
1-6 |
10-60 |
1030 |
39x230x160 |
6.0 |
76 |
8.0 |
0.55 |
M3.6-M6.2 |
M2.8-M5.1 |
|
ABP55 |
F1/4” |
1000 |
1.2-7.5 |
12-75 |
1030 |
39x230x160 |
6.0 |
76 |
8.0 |
0.55 |
M3.8-M6.6 |
M3.0-M5.6 |
|
ABP60 |
F1/4” |
550 |
3-11 |
30-110 |
1030 |
39x230x160 |
6.0 |
76 |
8.0 |
0.55 |
M5.0-M7.3 |
M4.0-M6.2 |
|
ABP65 |
F1/4” |
300 |
3-18 |
30-180 |
1150 |
39x235x160 |
6.0 |
76 |
8.0 |
0.55 |
M5.0-M9.3 |
M4.0-M7.2 |
|
ABP68 |
F1/4” |
250 |
5-28 |
50-280 |
1150 |
39x235x160 |
6.0 |
76 |
8.0 |
0.55 |
M6.0-M11.0 |
M4.9-M8.7 |
*ABP38, ABP41, ABP47: Small Body & Light weight
*If Ø5mm, put "A" in the end EX. ABP38A
*3/8" square available from ABP48-68,and code change to AWP48-68
*Standard air inlet direction up bottom only.If need three-direction air inlet up bottom rear,Put"T" in the end EX. ABP38T
Character:
*Patent motor: Output power: 30% more than other brand.
*Low weight: All new patent mechanical design and grip material 25-44% lighter than other brand.
*New Aluminum alloy materials and the special rubber grip; the A-series tools possess better lasting; wear-resisting and comfortable grasp properties.
*A series have either the push function or the Push-trigger function (for avoid the damage of screw surface and increase the safety of operators).
*With the professional tri-direction air inlet – upside; under-side ; behind-side (optional). A-series tool makes the space flexible and agile; the user can change the air-inlet direction as per their need.
*Best balance; easy to trip.
*Torque external adjustable.
*Low vibration; Low noise.
