  • 1/4" (6.4MM) HYDRAULIC BLIND RIVETS FASTENING AIR RIVETER KIT
  • 1/4

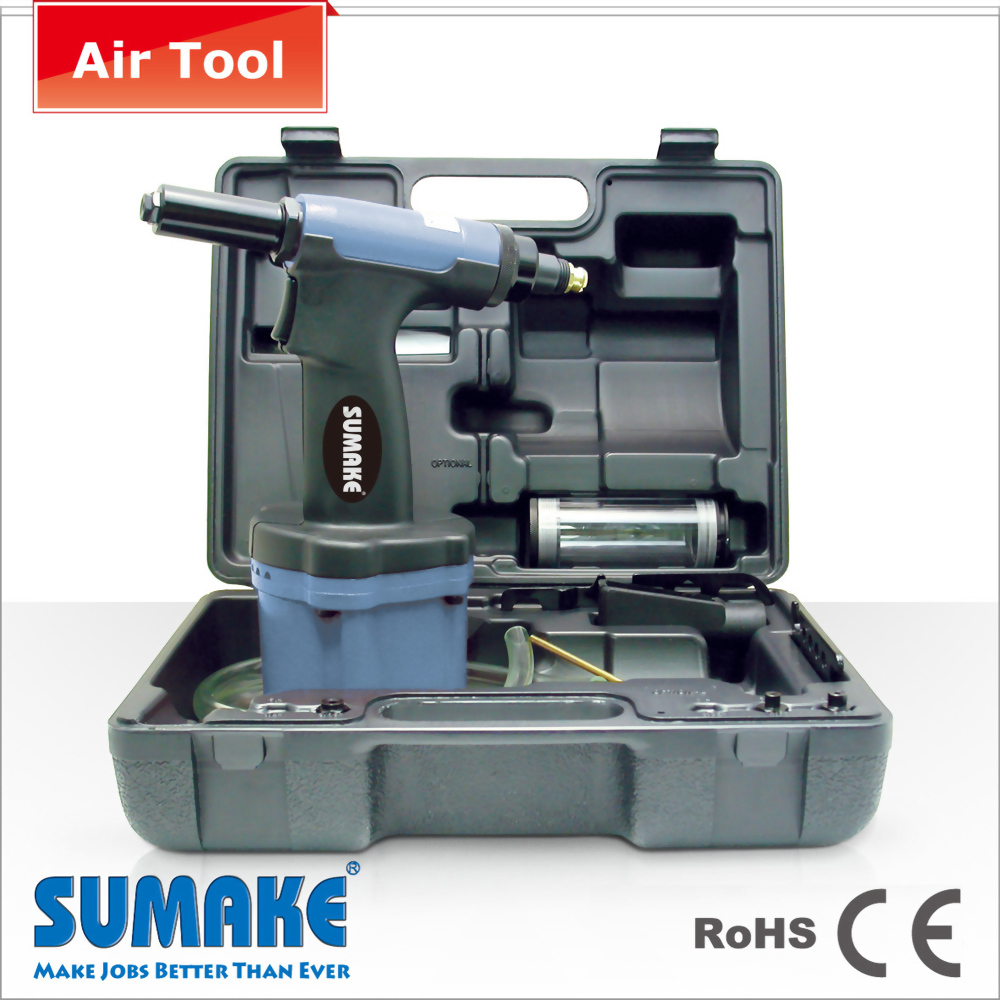

1/4" (6.4MM) HYDRAULIC BLIND RIVETS FASTENING AIR RIVETER KIT

Model : ST-66154K

1/4" (6.4MM) HYDRAULIC BLIND RIVETS FASTENING AIR RIVETER KIT

(BLOW CASE)
Model #ST-66154K

Riveter

Blind Rivet Setting Capacity

3/22"(2.4mm), 1/8"(3.2mm), 58/32"(4mm), 3/16"(4.8mm), 1/4" (6.4 mm)

Traction Power

2,248 lbs (1,022 kgs)

Stroke Length

11/16" (17 mm)

Overall Length

10-9/16" (269 mm)

Recommend air pressure

90 psi (6.3 kg/cm²)

Air Inlet (PT)

1/4"

Air Hose (ID)

3/8"

Jaws

2

Net Weight

1.95 kgs (4.30 lbs)

Packing:8 pcs/ Ctn/ GW:19.5 kgs/ 3.6 Cuft

CONTENT:

1pc - ST-66154 air riveter

1pc each - 1/8";5/32";3/16";1/4" Nose Piece(in tool)

1pc - Collection Bottle

1pc - Jaw Pusher(3/16")

1pc - Guide Hose

2pcs - of Multi-Wrench

Features:


* Patented Vacuum Mandrel Collection System

holds the rivets in the Nosepiece regardless of

tool position also assure perfect shock absorption.

* Designed with patented " tools assembled with

module units in composite housing: for operator's

comfort and ease of service.

* Easy adjustable Vacuum Regulator for the best

efficiency in setting different size of bind rivets.

* Easy adjustable head & Nut designed for obtaining

the most effective stroke.

* Two-piece Ultra Jas made from high-grade tool

Steel and special heat treatment for durability.

* Forged and heat treated aluminum alloy made

Hydraulic Section for the best rigidity.

* Side-mounted Swivel Air Inlet Joint for the best maneuverability of the tool.

* More efficient and faster rivet setting than

compatible designs in the field.
