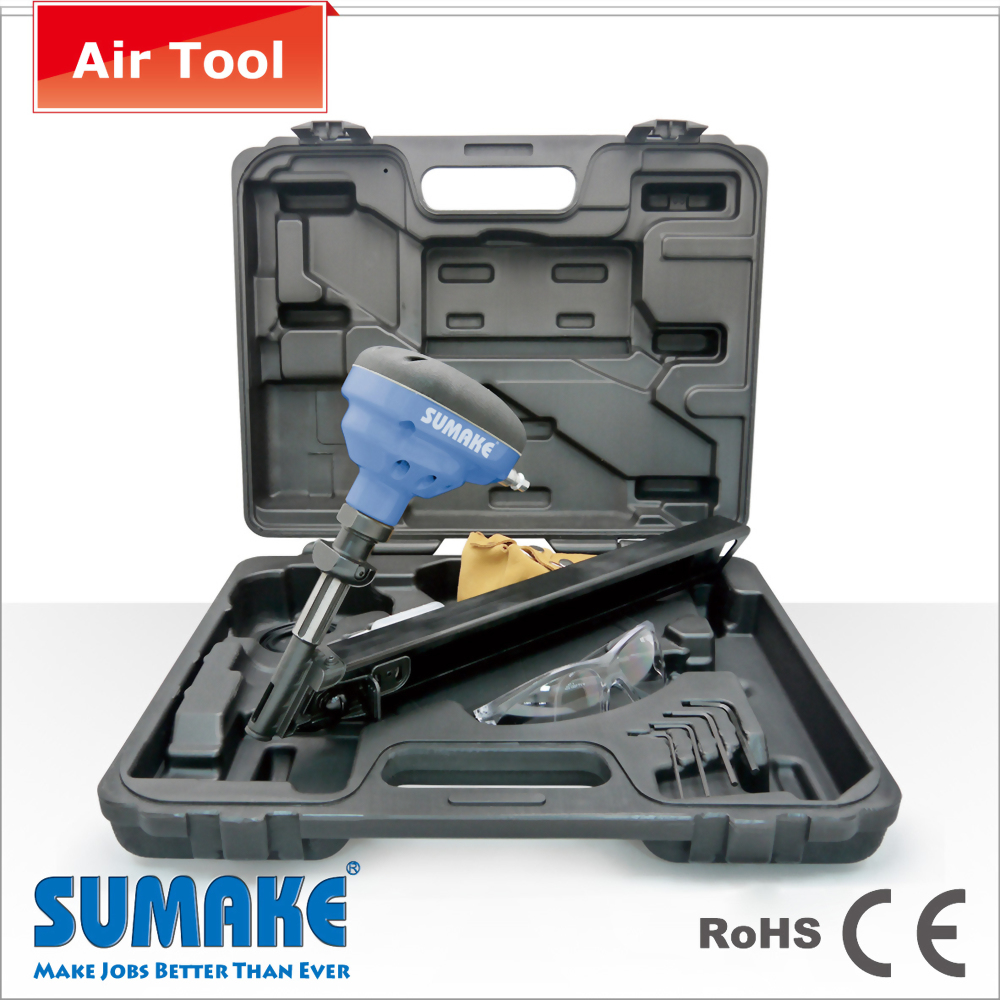

• 34˚ AIR PALM NAILER W/360˚ SWIVEL MAGAZINE CONNECTOR

Model : ST-3303

Q'ty :

Add To Inquiry


34˚ AIR PALM NAILER W/360˚ SWIVEL MAGAZINE CONNECTOR

MODEL #ST-3303

Fastener

Fastener

Nail Head Type

Full round head

Nail head Dia.

7.5 - 8.3 mm (0.3 - 0.33 in.)

Shank Dia.

3.3 - 4.1 mm (0.131 - 0.162 in.)

Nail length

38 mm (1-1/2 in.)

Nail angle

34 degree

Magazine capacity

30 plastic or paper taped nails


Tool Specifications

Tool Specifications

Dimensions

223 x82 x336 mm

Weight

1.84 kgs (4.04 lbs)


Packing: 5pcs/Ctn/17kgs/10kgs/2.7 cuft


Features :

These collated joist hanger nailers with swivel magazine are designed to work easily in tight; confined space.

* Nose Piece -The unique design makes the magazine can rotate 360 degrees for easier corner working.

*Elastic Washer - U.S and Taiwan patents; effectively reduce the impact from the piston avoiding from uncomfortable and wrist injury. It can still function after a long time of overturn or accidental fall which cause the cylinder sink and airway close.

*Cover - Cover are shaped by ergonomics; with no screws in the cover for a smoother touch. The vent was place in the front and back instead of top to avoid the cause of smudge on hand.

* Cylinder & Valve - Surface progress thru Trust Hard Coat Treatment for high durability and rust-less.

* Piston - Material 7075 for high abrasion resistance and stable.

* Piston Driver- Material SKD61 for superior stable and firm.
