  • 190mm Industrial Vibration Reduction Hex Type Air Hammer

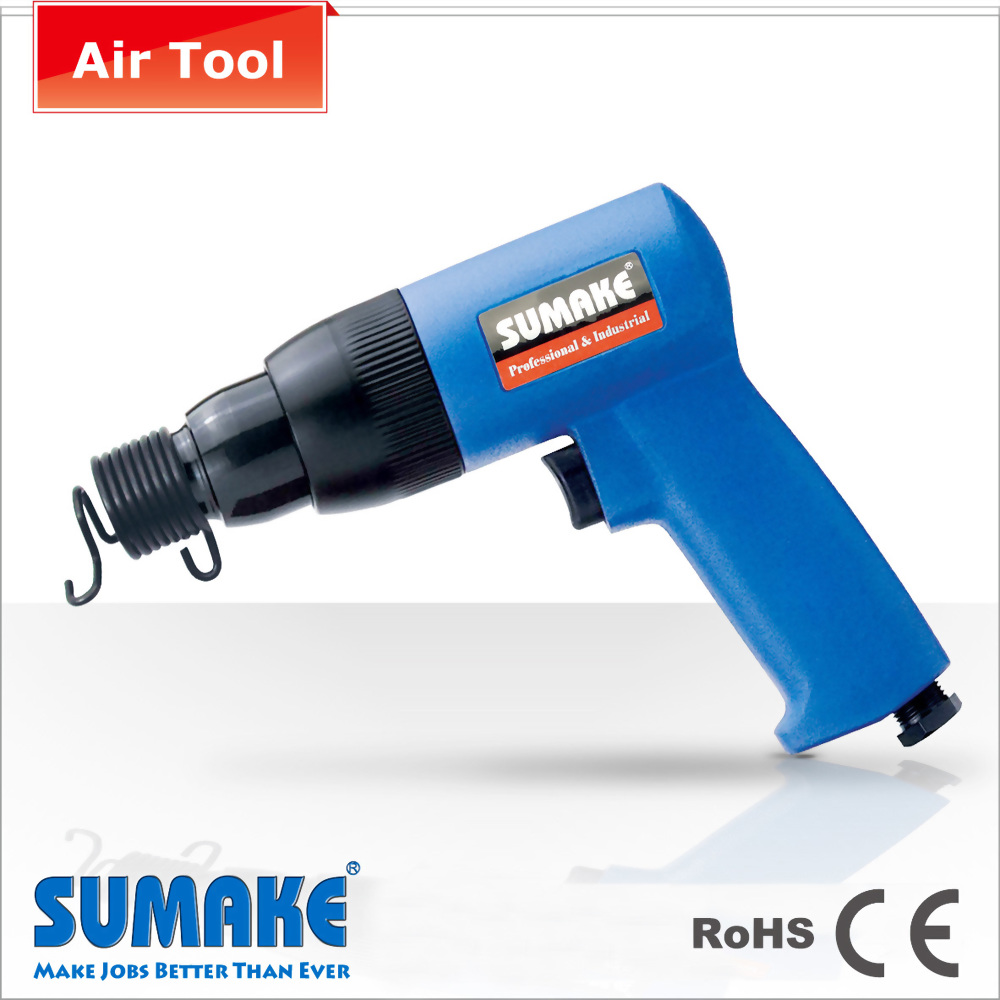

190mm Industrial Vibration Reduction Hex Type Air Hammer

Model : ST-2237/H

190mm Industrial Vibration Reduction Hex Type Air Hammer

Model #ST-2237R (ROUND: 0.401" Chisel shank)

Model #ST-2237H (HEX: 10/11mm Chisel shank)


                                * Vibration - Damped *

Model #

ST-2237/R, ST-2237/H

Bore Diameter (I.D)

 3/4" (19 mm)

Piston Stroke

 2-51/64" (71 mm)

Blow Per Min

 3,000(BPM)

Noise level (dBA)

 102

Air Consumption

 14 cfm (396 l/min)

Suggest Air pressure

 6.5 kg/cm2 (90 psi)

Overall Length

 7.48" (190 mm)

Air inlet

 1/4" PT

Air hose (I.D)

 3/8"

Net Weight

 1.7 kgs (3.7 lbs)


Packing: 1set/color box, 10sets/Ctn/18 kgs/0.8 Cuft



Related Products

190mm Vibration Reduction Round Pittsburgh Air Hammer

Model : ST-2260/R

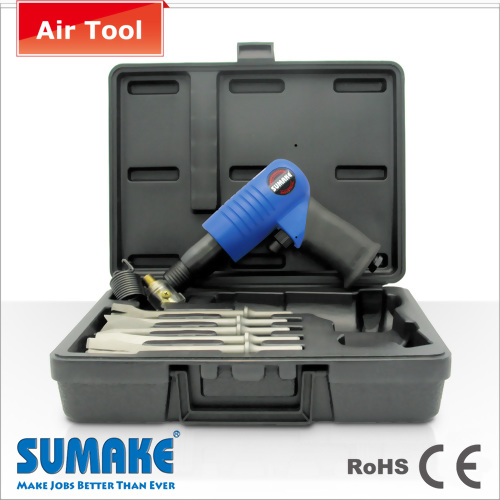

Air hammer kit
