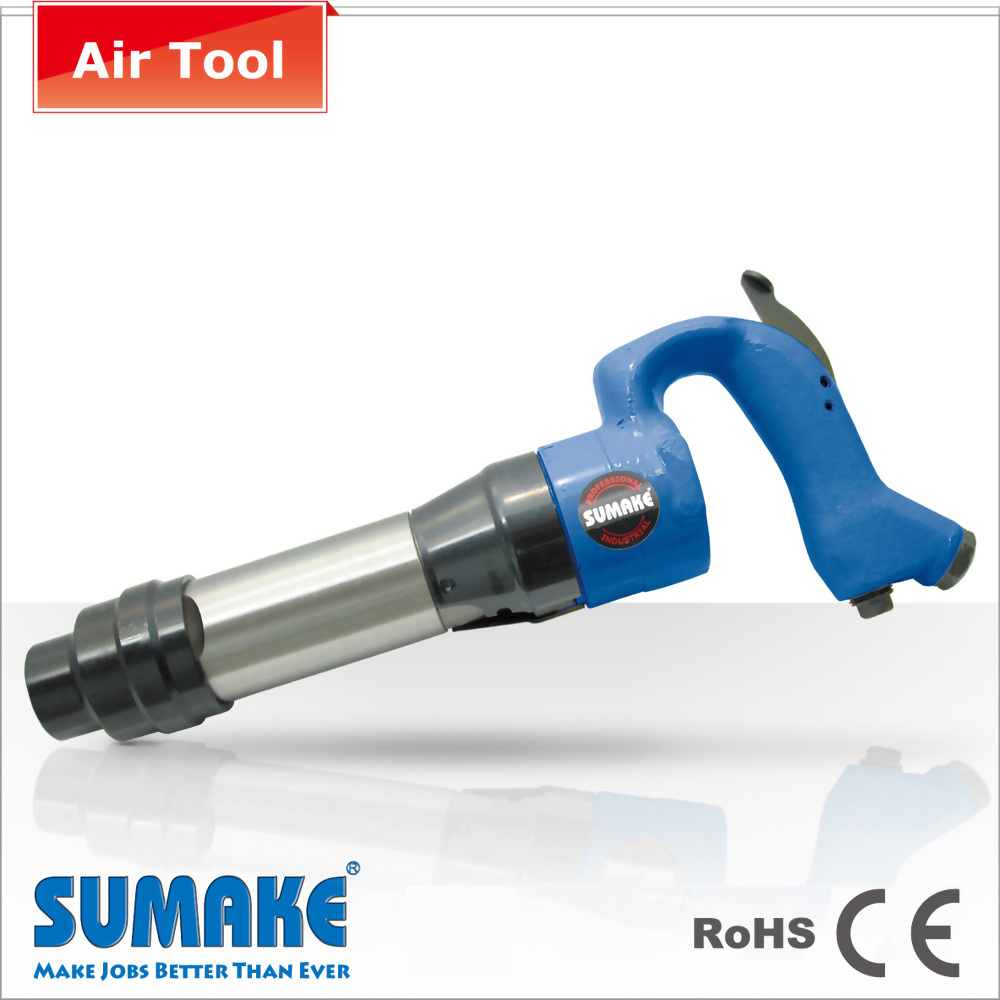

3" AIR CHIPPING HAMMER

Model : ST-2203/R(H)

3" AIR CHIPPING HAMMER

Model #ST-2203/R (ROUND shank)

Model #ST-2203/H (HEX shank)



Model #

ST-2203R&H

Piston Diameter (I.D)

1-1/8" (28.5 mm)

Chisel Shank

Hex:14.7 mm, Round:17.3mm

Piston Stroke

3" (77 mm)

Blow Per Min

1,920(BPM)

Air Consumption

25 cfm (700 l/min)

Suggest Air pressure

6.3 kg/cm2 (90 psi)

Overall Length

14-7/8" (378 mm)

Air inlet

3/8" PT

Air hose (I.D)

1/2"

Net Weight

6.5 kgs (14.3 lbs)



Packing: 2pcs/Ctn/17 kgs/1 Cuft
