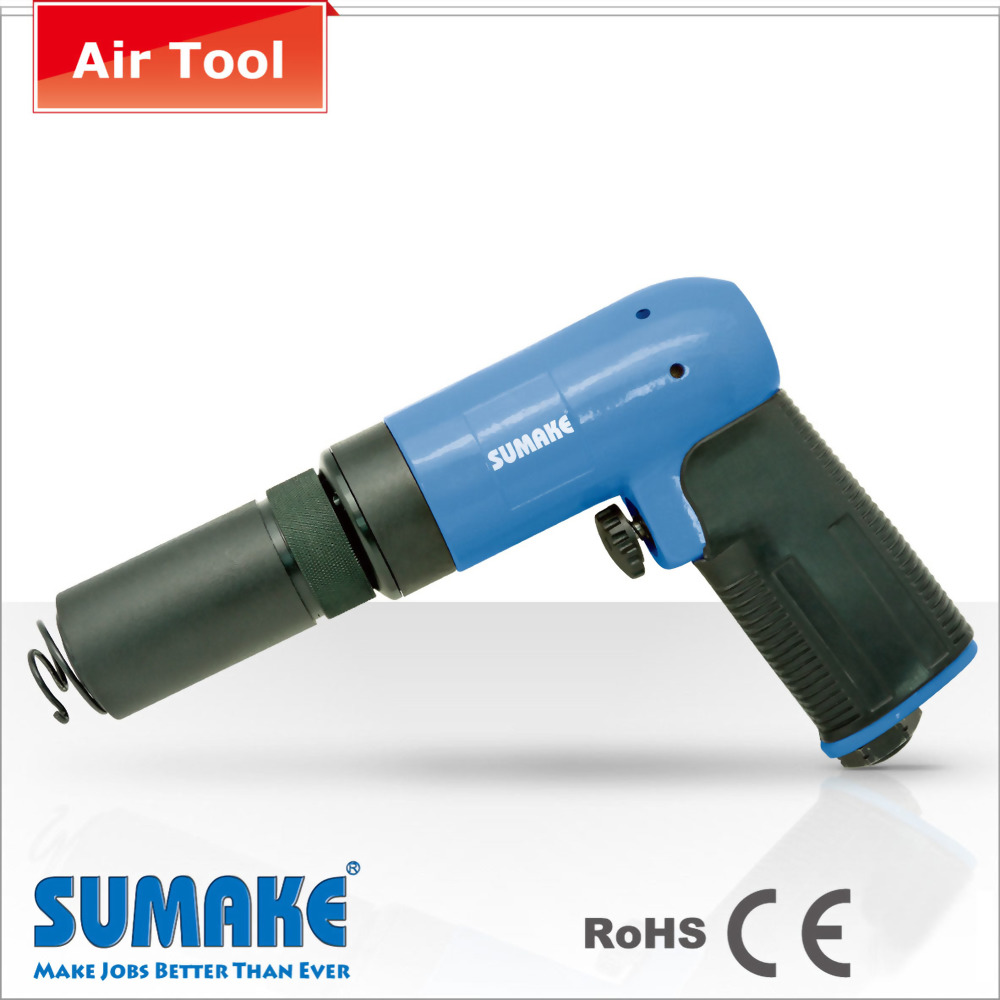

Vibration Damped Riveting Hammer Systems
●Most popular for aircraft riveting
●Two tools work as one super-low recoil.
●Less counterforce. The sensation is smooth and comfortable, while working.●An effective design, the cushion of air forms behind hammer piston to lower vibration and extend usage time.
ST-24001/ST-24002/ST-24003
|
Model No. |
Chisel Shank Dia. (inch) |
Bore Diameter (I.D.) |
Piston Stroke Length |
Blow Per Min (b.p.m.) |
Rivet Nuts |
Overall Length |
Air Inlet (PT) |
Air Hose (I.D.) |
Air Consumption |
Net Weight |
Bucking Bar |
|||||||
|
inch |
mm |
inch |
mm |
Dural |
Steel |
inch |
mm |
|
|
cfm |
l/min |
lbs |
kgs |
|||||
|
ST-24001 |
0.401 |
19/32 |
15.24 |
1-37/64 |
40 |
3,690 |
2/32-3/16 |
3/32-5/32- |
7.09 |
180 |
1/4” |
3/8” |
14 |
396 |
2.43 |
1.1 |
ST-2510(A) |
|
|
ST-24002 |
0.401 |
19/32 |
15.24 |
4-1/64 |
102 |
2,160 |
5/32-1/4 |
3/16 |
8.86 |
225 |
1/4” |
3/8” |
14 |
396 |
2.98 |
1.35 |
ST-2510(A) ST-2516(A) |
|
|
ST-24003 |
0.401 |
19/32 |
15.24 |
5-25/64 |
137 |
1,440 |
3/16-5/16- |
5/32-1/4- |
11 |
280 |
1/4” |
3/8” |
14 |
396 |
3.31 |
1.50 |
||
