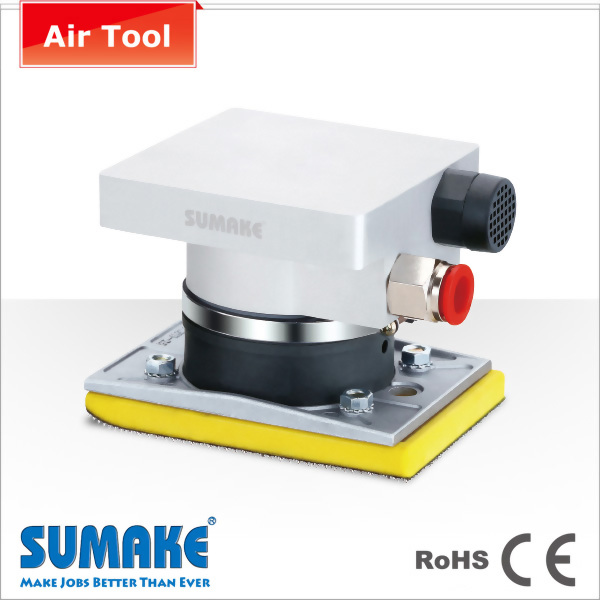

Professional Air Orbital Sander For Robot-73x98mm Pad
●Applied to surface finishing process of mass production for electronic products shell parts, car wheel frame and wooden parts.
●Mounted with robot arm for processing in automated manufacturing line, which will greatly improves overall work efficiency.●Additionally designed with built-in stainless ball bearing for water-proof as optional solution. (Our standard model is applied with normal ball bearing)
Professional Air Orbital Sander For Robot-73x98mm Pad
|
Model No. |
Orbit Diameter(mm) |
Pad Size |
Free Speed (r.p.m.) |
Spindle Thread |
Air Inlet & Hose Size |
Air Consumption |
Length (HxL) (mm) |
Net Weight (N.W.) |
Packing Pcs/Ctn/G.W./Cuft (kgs) |
||||
|
Standard |
Option |
inch |
mm |
cfm |
l/min |
lbs |
kgs |
||||||
|
ST-AS62NJH(V) |
3 |
1.5 |
2.87x3.86 |
73x98 |
9,000 |
M5xP0.8 |
3/8” |
15 |
430 |
76x105 |
1.85 |
0.84 |
6Pcs/Ctn/11.5/1.44’ |
*H: J-Hook / V:Stick / R:Rubber
*For 1.5mm Orbit Model No:xx-xxxx....-1
*Model No with〝-W〞 is built-in stainless ball bearing for water-proof. ex:ST-AS60N3H-W
