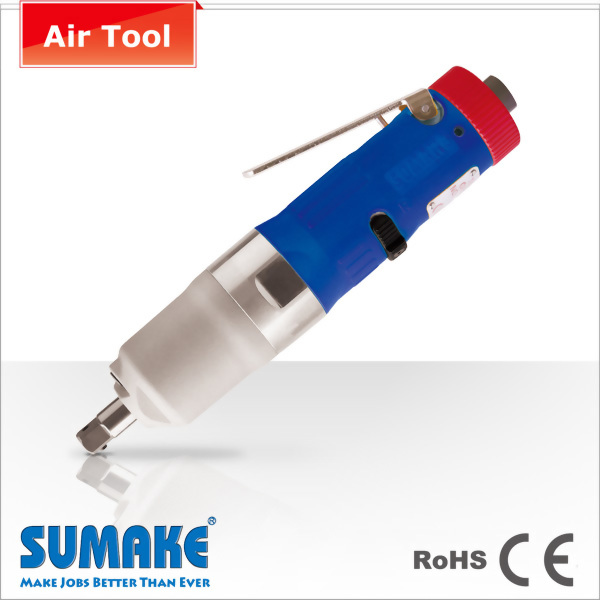

3/8" Straight Type Auto Shut-Off Oil Pulse Wrench-7~16 Nm,Low Pressure

Model : IPW-2316L

Dual-Cylinder Motors with High Efficiency.

No special tool required when need to repair or adjust inner parts. Commonly used wrench shall be used for disassembly.

Improvements on working efficiency and duration:

1. Tightening precision with 30% Applicable to various tightening operations.

2. Time for tightening with same target torques is reduced for 30% improve efficiency.

3. Duration performance improved for 40% Reduce cost.

Since when the automatic pressure release device is wide opened. The hydraulic oil rotation axle in the pulse unit would generate small fluidity resistance. Therefore, pulse times acquired in a same time period would be longer, speed to reach stable torque range would be faster. And torque precision would be more stable as well.


IPW-2316L / 3/8" Straight Type Auto Shut-Off Oil Pulse Wrench-7~16 Nm

Model No.

Square

(Hex)

(inch)

Capacity

Bolt Size

(mm)

Torque Range

(5-6 bar)

Free Speed

(6 bar)

(rpm)

Air

Inlet

(PT)

Rec. Hose

Size

(mm)

Sound

Pressure

(dB(A))

Air

Consumption

Overall

Length

Net

Weight

Nm

ft-lbs

cfm

I/min

inch

mm

lbs

kgs

IPW-2316L

3/8

5-6

7-16

 5.2-11.8

5,700

1/4"

6.5

75

7

200

 8.58

218

1.83

 0.83
