Purchasing Guide

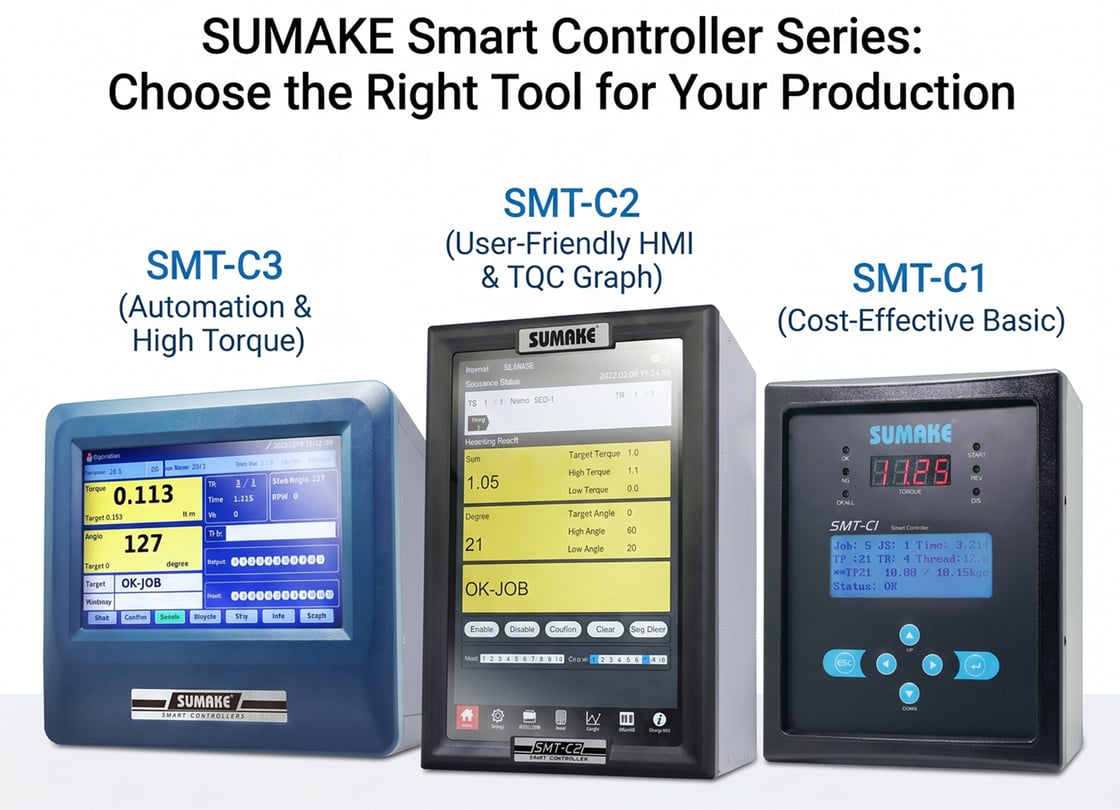

Master Your Assembly Line: Choosing the Right

SUMAKE Smart Controller

In today's Industry 4.0 environment, fastening quality is no longer determined solely by torque accuracy. Manufacturers increasingly require complete process visibility, data traceability, and quality assurance throughout the entire assembly process. SUMAKE's Smart Tightening Solution addresses these challenges by combining precision fastening control with advanced data management, helping manufacturers achieve higher productivity and a zero-defect manufacturing strategy.

Precision Control for Every Application

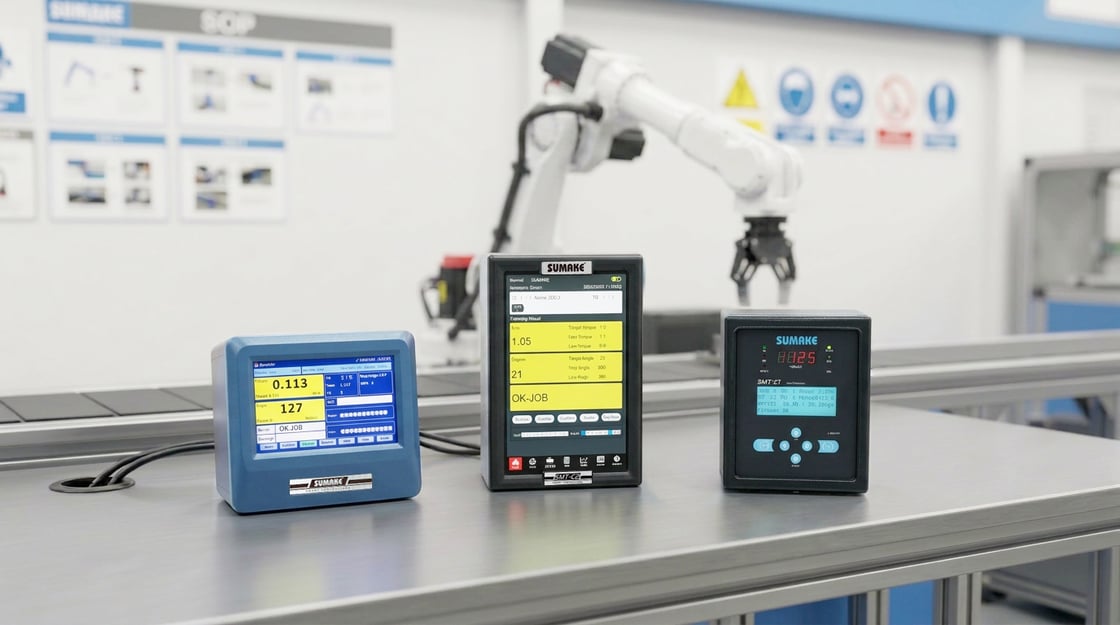

The SUMAKE SMT Controller Series delivers outstanding fastening consistency with a repeatability of 3 Sigma ±5%. Depending on production requirements, different control methods are available:
▪  Torque & Angle Control – Available on SMT-C2 and SMT-C3, providing precise monitoring of both torque and rotational angle for critical fastening applications.
▪  Torque & Thread Control – Available on SMT-C1, enabling monitoring of fastening cycles to verify proper screw seating and tightening completion.

How Torque & Angle Control Prevents Floating Screws and Stripped Threads

Floating Screw (Not Fully Seated)
A screw may reach the target torque before the parts are fully clamped together. By monitoring the rotation angle, the system can detect insufficient screw travel and immediately flag the fastening as abnormal.

Stripped Thread
If the screw continues to rotate but cannot build enough torque, the thread may be damaged. The system detects this condition through excessive angle and insufficient torque, then stops the process and alerts the operator.

More Consistent Clamp Force
Torque alone cannot guarantee a consistent clamping result. By monitoring both torque and angle, the system helps achieve more consistent clamp force from screw to screw, reducing assembly variation and improving product quality.

Simply Put:

▪  Torque confirms the screw is tightened to the correct force.

▪  Angle confirms the screw has reached the correct position.

▪  Torque + Angle helps ensure every screw is tightened in a more consistent and reliable manner.

By combining both measurements, Torque & Angle Control helps prevent floating screws, stripped threads, and other common assembly defects while improving clamp force consistency, product quality, and long-term reliability.

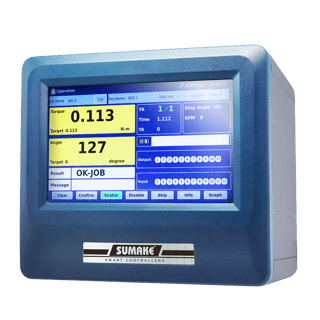

SMT-C3:

Built for Advanced Automation

The SMT-C3 is SUMAKE's flagship smart controller, designed for demanding industrial environments and automated production lines.

Key Features:
▪  Torque range: 0.05 – 60 Nm
▪  7-inch touchscreen interface
▪  Modbus and Open Protocol via RS-485 and LAN communication
▪  Ideal for factory automation integration and multi-device networking
For manufacturers requiring high torque capability, centralized control, and seamless connectivity with automation systems, the SMT-C3 provides a powerful solution.

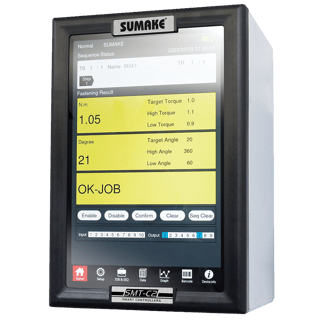

SMT-C2:

Visualized Process Control

The SMT-C2 is designed for production environments where real-time visibility and operator-friendly operation are critical.

Key Features:
▪  Torque range: 0.13 – 25 Nm
▪  Large 10-inch touchscreen display
▪  Modbus and Open Protocol via RS-232 and LAN communication
▪  Comprehensive fastening monitoring and visualization
The SMT-C2 supports advanced fastening programs and provides intuitive process monitoring, making it ideal for quality-focused assembly lines.

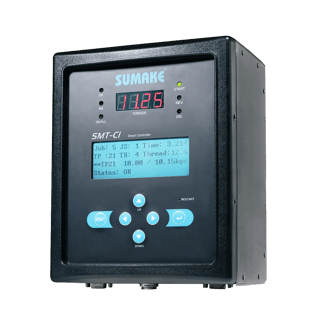

SMT-C1 / SMT-C1B:

Cost-Effective Traceability

For manufacturers seeking reliable fastening control with lower investment costs, the SMT-C1 series offers an efficient solution.

Key Features:
▪  Torque range:
    ▫  SMT-C1: 0.1 – 7 Nm
    ▫  SMT-C1B: 2.4 – 25 Nm
▪  Compact button-operated interface
▪  ASCII RS-232 and LAN communication
▪  Supports Push Start, Lever Start, and Remote Start modes
The SMT-C1 series is particularly suitable for electronics assembly and precision fastening applications where data traceability remains essential.

Integrated Software Ecosystem
Data management is at the heart of the SUMAKE Smart Tightening Solution.

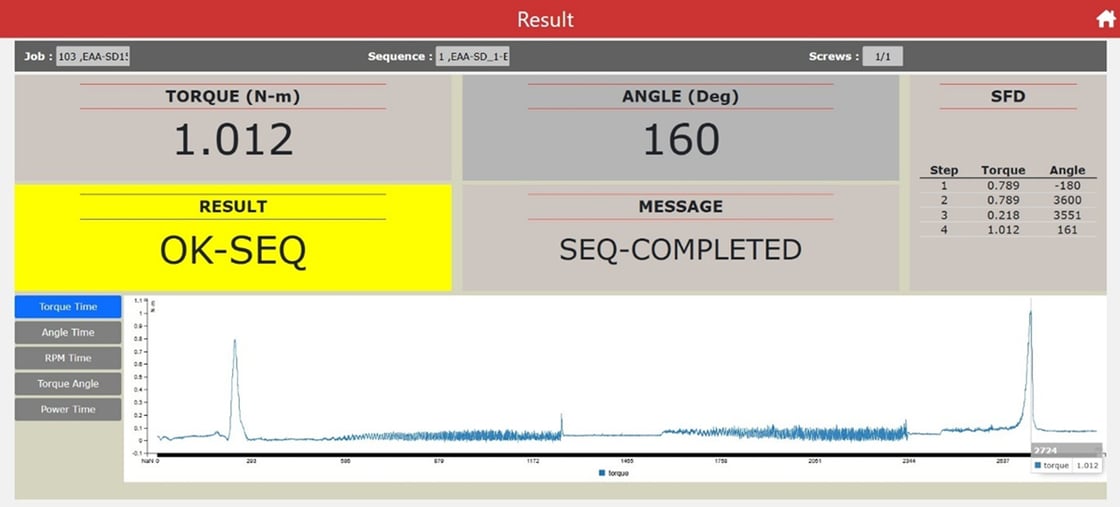

IDAS (Information Data Acquisition and Setting System)
Available on SMT-C2 and SMT-C3, IDAS provides:
▪  Multi-device monitoring
▪  Flexible parameter configuration
▪  Centralized data collection
▪  Visualized system management
▪  TQC trend analysis for Time, Torque, and Angle values

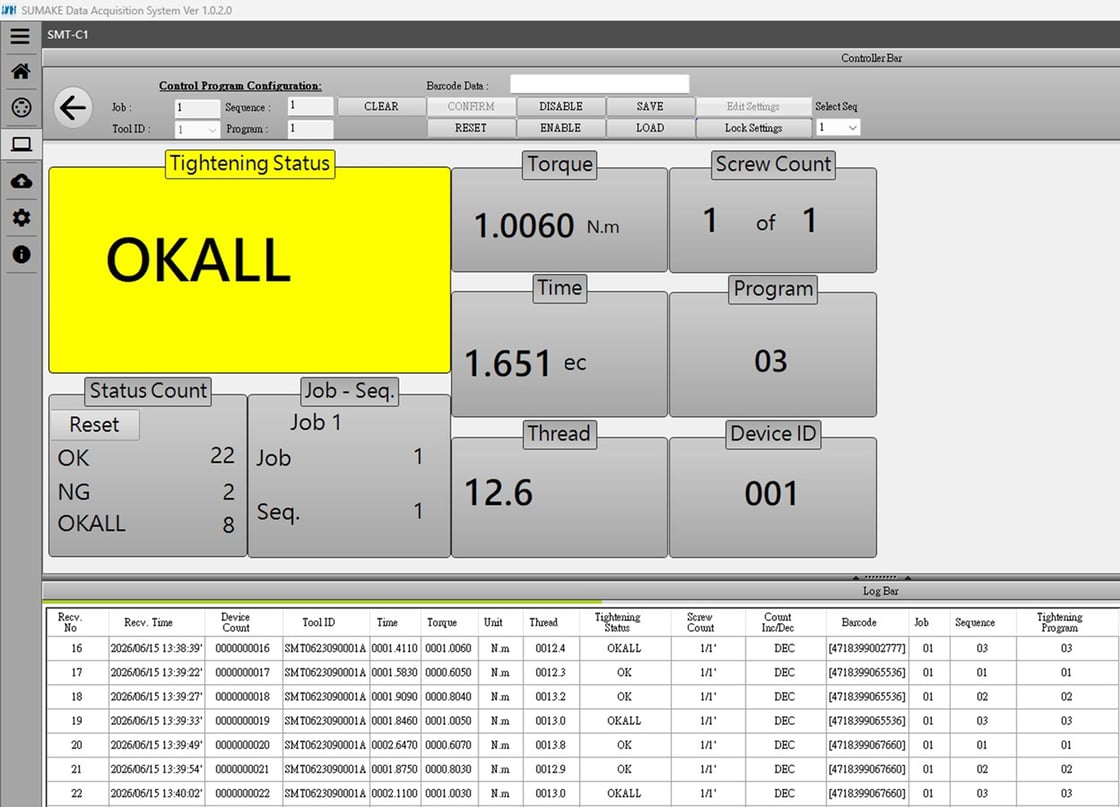

DAS
Designed for SMT-C1 series applications, DAS offers:
▪  Parameter setup and management
▪  Real-time process monitoring
▪  Tightening data export

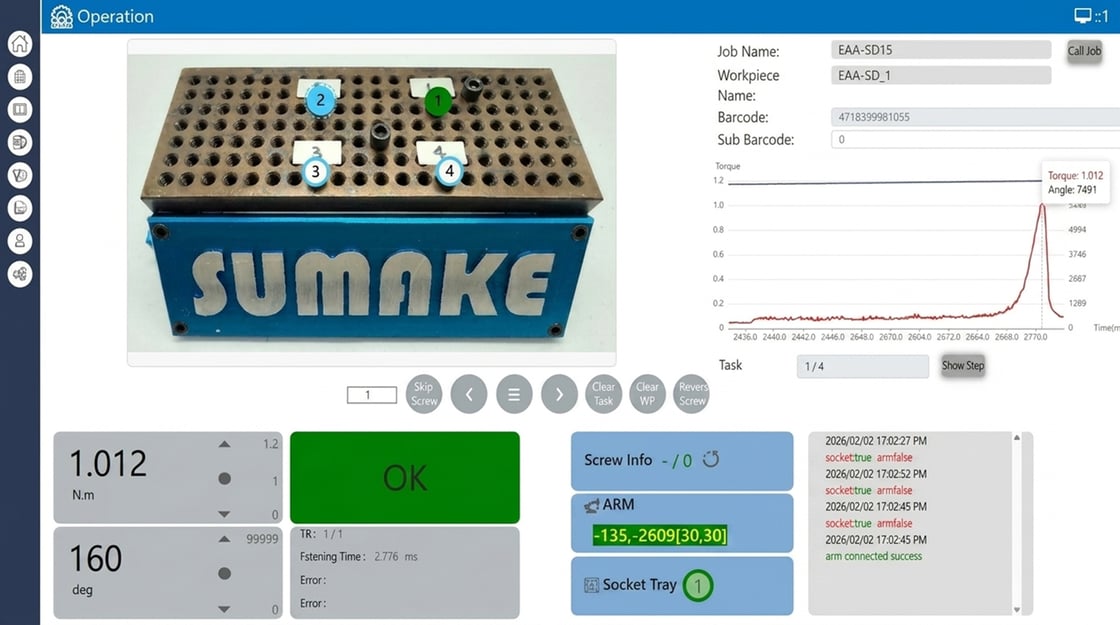

SMT-SMIS
An optional smart manufacturing platform that extends traceability and production management capabilities across the factory.

At-a-Glance Comparison: Technical Specifications
