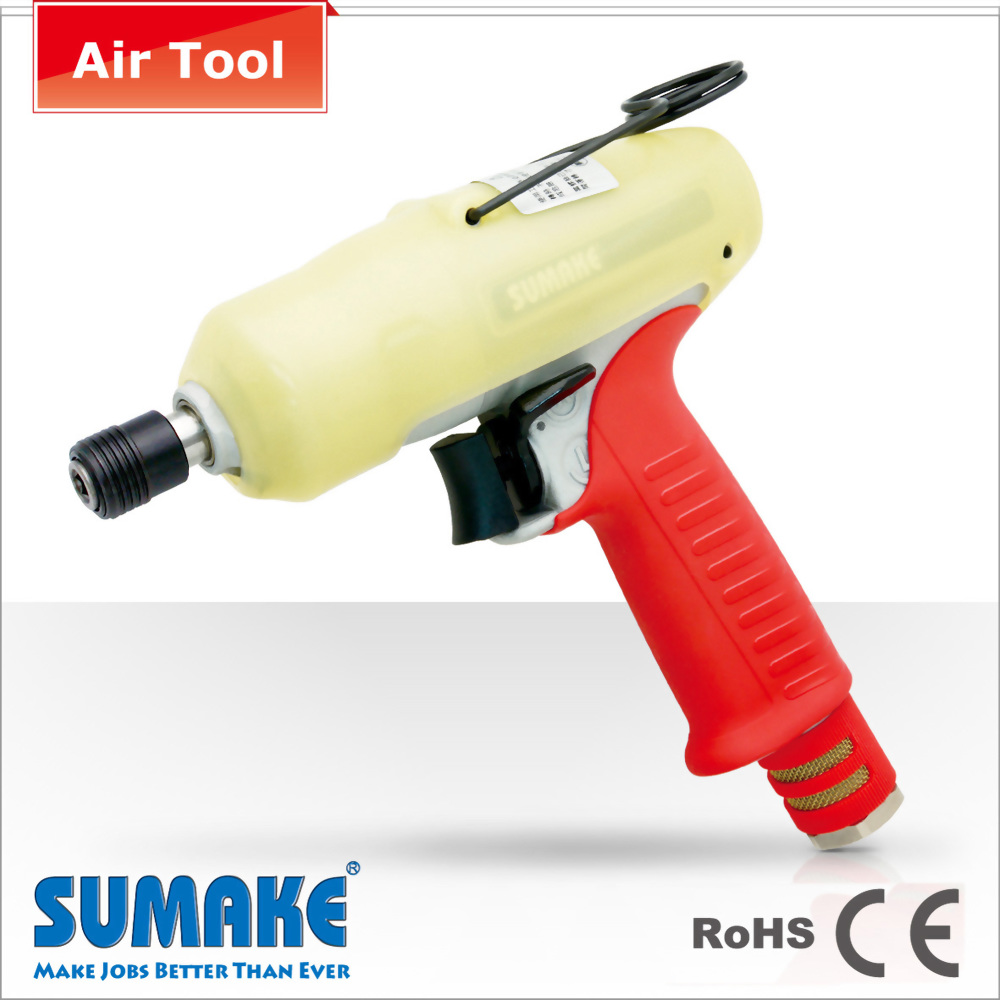

  • High pressure auto shut-off air oil pulse assembly pistol light screwdriver

1/4 Hex High Pressure, 4-45 N.m

Model : IPS-2209P,IPS-2216P,IPS-2230P,IPS-2232P,IPS-2242P


Technology: oil pulse special machancial structure and patent offer low noise, low vibration and small reaction force.

Economic: wide-ranging torque with many patents and longer life cycle of motor.

Improvements on working efficiency and duration:
●Improvement I: tightening precision with 30% Applicable to various tightening operations.
●Improvement II: time for tightening with same target torques is reduced for 30% Improve efficiency.
●Improvement III: duration performance improved for 40% Reduce cost. (Comparison test in our factory)
Since when the automatic pressure release device is wide opened, the hydraulic oil rotation axle in the pulse unit would
generate small fluidity resistance, therefore,  pulse times acquired in a same time period would be longer, speed to reach
stable torque range would be faster, and torque precision would be more stable as well.

Low oil mist: With self-lubricating blades and cylinder, it helps reducing the issue of lubricating oil and oil mist.



Model No.

Square

(Hex)

(inch)

Capacity

Bolt Size

(mm)

Torque Range

(5-6 bar)

Free Speed

(6 bar)

(rpm)

Air

Inlet

(PT)

Rec. Hose

Size

(mm)

Sound

Pressure

(dB(A))

Air

Consumption

Overall

Length

Net

Weight

Nm

ft-lbs

I/min

cfm

mm

inch

kgs

lbs

IPS-2209P

1/4Hex

5

4-12

3-8.9

4000

1/4”

6.5

75

200

7

161

6.38

0.92

2.03

IPS-2216P

1/4Hex

5-6

7-16

5.2-11.8

4500

1/4”

6.5

78

250

8.8

161

6.38

0.92

2.03

IPS-2230P

1/4Hex

6-8

20-34

14.8-25.2

6400

1/4”

6.5

80

350

12.4

171

6.85

0.95

2.09

IPS-2232P

1/4Hex

8

28-39

20.7-28.9

6500

1/4”

6.5

80

400

14.1

183

7.09

1.05

2.31

IPS-2242P

1/4Hex

8-10

32-45

28.9-33.3

5800

1/4”

6.5

80

480

16.9

191

7.5

1.26

2.78
