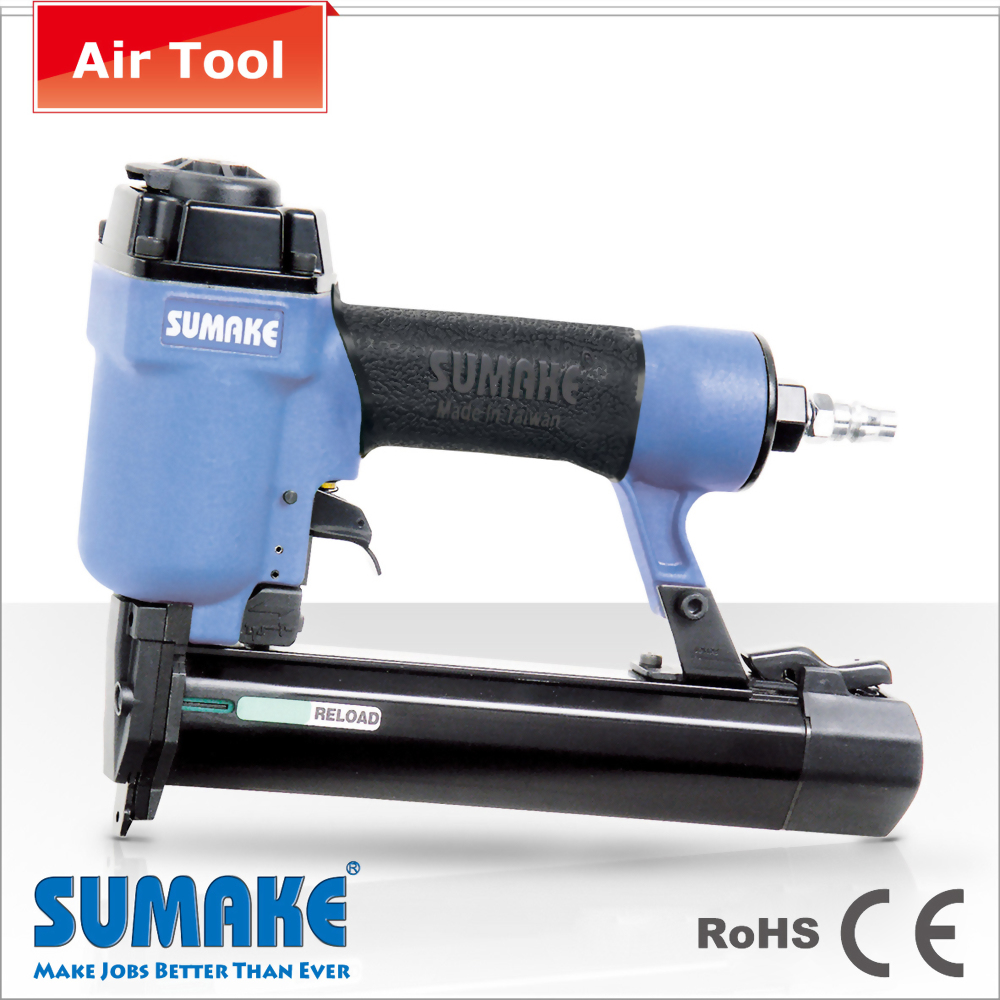

5 IN 1 AIR NAILER & STAPLER
3 IN 1 AIR NAILER & STAPLER
Model #F18/35MC
Tool Specifications
|
Tool Specifications- |
|
|
Weight |
1.32 kg (2.90 lbs) |
|
Length |
263 mm (10.35") |
|
Height |
200 mm (7.87") |
|
Width |
60 mm (2.36") |
|
Pressure |
60-100 psi |
|
Load capacity |
100 pcs |
|
Vibration (m/s) |
4.0 |
|
Noise (dBA) LpA; 1s |
86 |
|
LwA; 1s |
97 |
|
Air Consumption / S.C.F.M. |
0.8 |
Fastener -
1)
|
Brad Nail |
|
|
Head |
1.9 mm |
|
Thickness |
1.0 mm (0.04") |
|
Width |
1.25 mm (0.05") |
|
Length |
15 - 35 mm |
|
Gauge |
18 BWG |
2)
|
Staple |
|
|
Crown |
5.8 mm |
|
Thickness |
1.0 mm (0.04") |
|
Width |
1.25 mm (0.05") |
|
Length |
13 -25 mm |
|
Gauge |
18 BWG |
3)
|
Staple |
|
|
Crown |
10.1 mm |
|
Thickness |
1.0 mm (0.04") |
|
Width |
1.25 mm (0.05") |
|
Length |
13 - 30 mm |
|
Gauge |
18 BWG |
|
Thickness |
1.0 mm (0.04") |
|
Width |
1.25 mm (0.05") |
|
Length |
13 - 30 mm |
|
Gauge |
18 BWG |
* CE APPROVED.
Application:
1. Furniture upholstery
2. Light furniture/cabinet assembly
3. Light-framing
4. Packing
5. Trim and molding
Character:
* 360 degree adjustable exhaust port
* Adjustable saft; control depth of nails/staplers on the workpiece
* Ergonomical design for continuous operation
* Safe and smooth latch mechanism; one touch to open magazine and one slight push to close
* New design magazine accommodates the nail up to 1-3/8" (35mm) and staples up to 1-1/16" (30mm)
