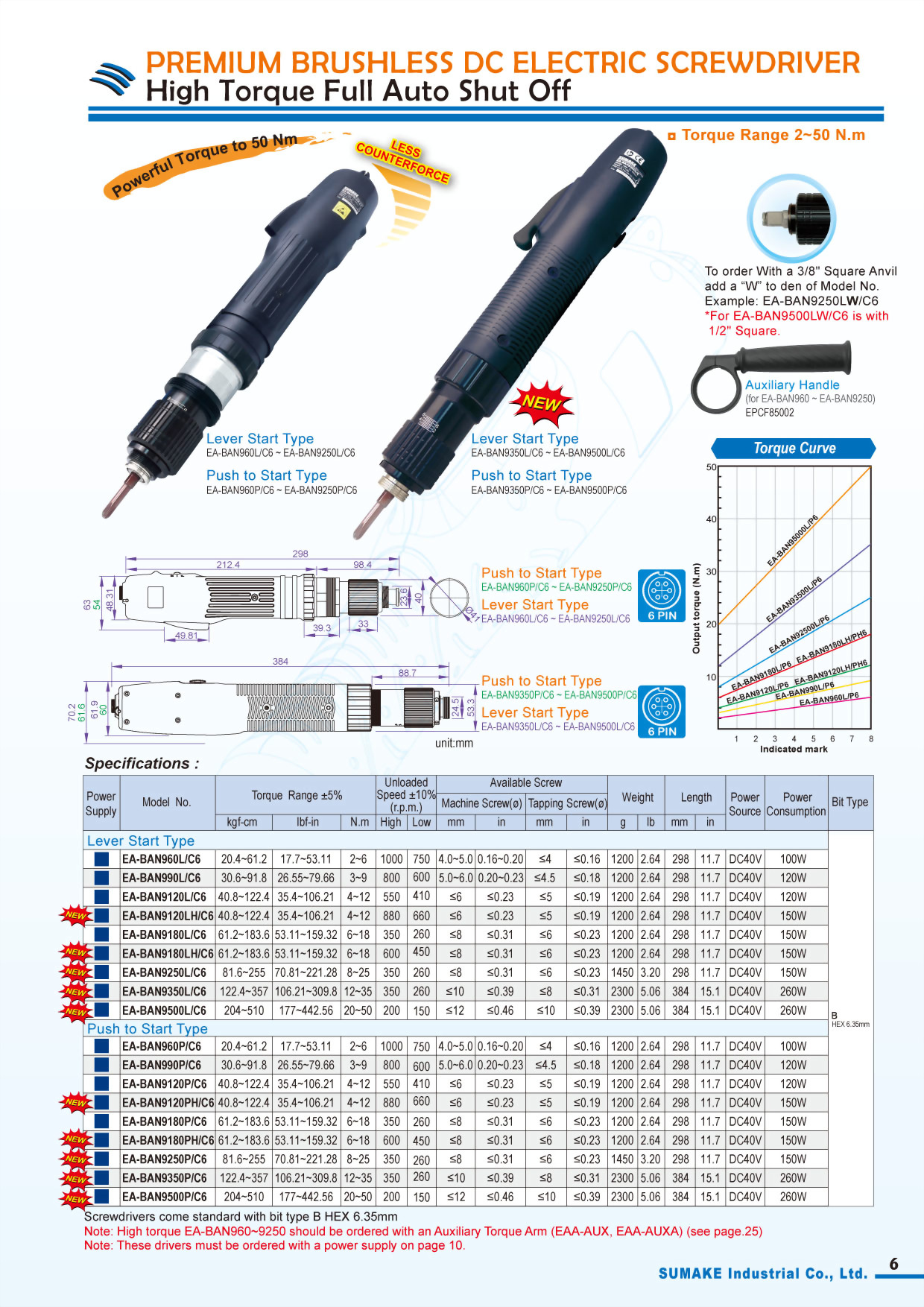

BRUSHLESS FULL AUTO SHUT-OFF DC40V, PUSH TO START TYPE ELECTRC SCREWDRIVER (6PIN)

Model : EA-BAN990P-C6

BRUSHLESS FULL AUTO SHUT-OFF DC40V, PUSH TO START TYPE
ELECTRC SCREWDRIVER (6PIN)

Model # EA-BAN990P/C6


Model #

EA-BAN990P/C6

Torque Range

30.6- 91.8 kgf-cm (3- 9 Nm)

Uploaded Speed

800 r.p.m. (+-10%)

Available Screw

Machine Screw Ø

5.0-6.0 mm (0.20-0.23")

Available Screw

Tapping Screw Ø

≤4.5 mm (≤0.18")

Weight

1,200g (2.64 lb)

Length

298 mm (11.7")

Power source

DC40V

Power consumption

100W

Bit Type

HEX 6.35mm

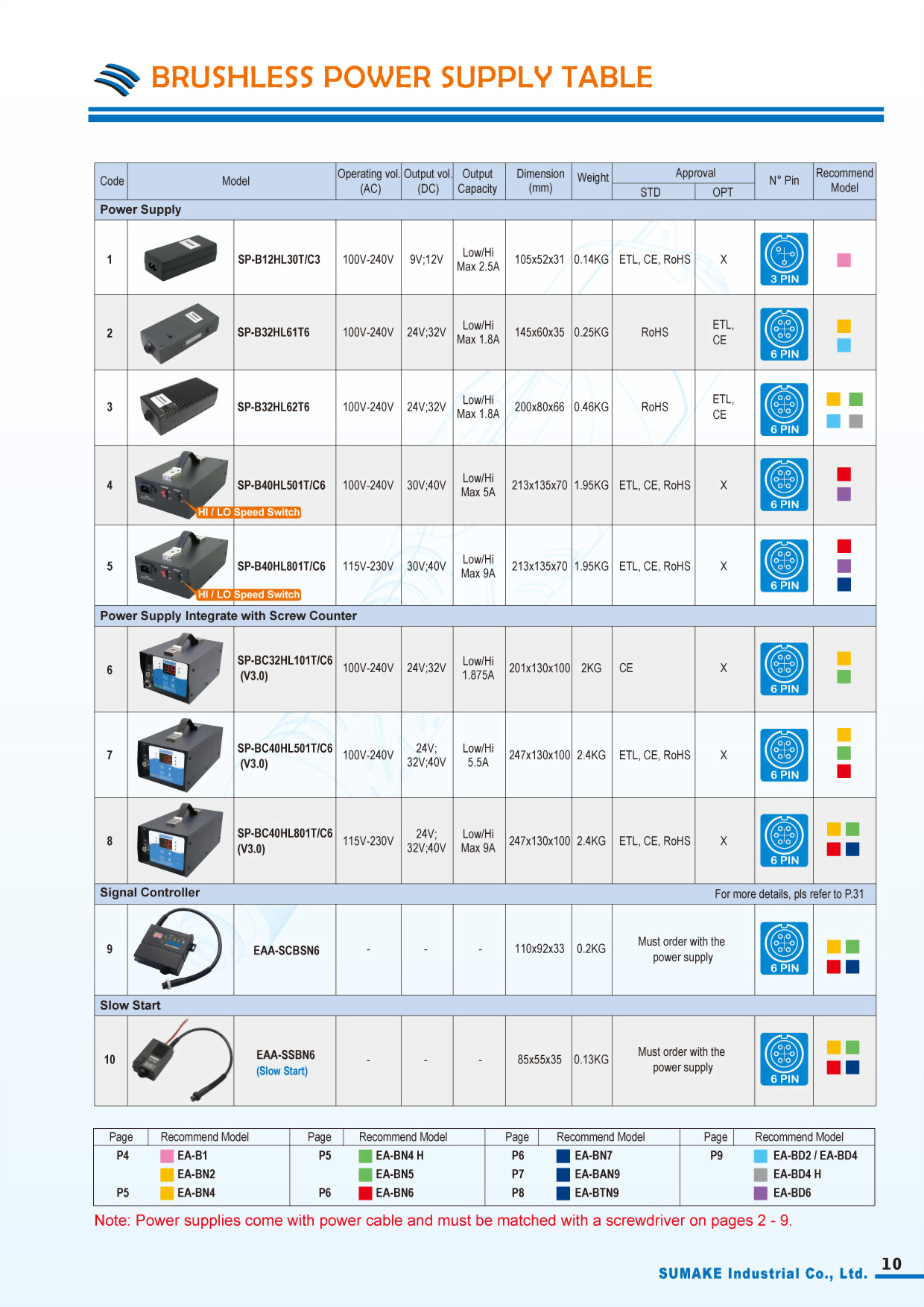

Recommend: To be ordered with the POWER SUPPLY #SP-B40S500T/C6
(Refer the below photo)



Application
* Auxiliary Arm with screwdriver
proimages/EAA-AUXA.jpg

* Telescoping Torque Arm with screwdriver
proimages/TA-T030.jpg

Features-

* Brushless motor design does not create the carbon dust. It is the best fit for assembling high torque products in clean- room circumstance.

* High torque and strong power performance benefits of Sumake high powerful electric screwdriver along capabilities of a pneumatic tool.

* Assemble large-sized LED/LCD panel and home appliances. Tools can be hanged with spring blancer to lessen work fatigue.

* Torque range from 2 to 15 N.m; precise torque control provides excellent torque repeatability.

* Highly mobile; easy to operate; high efficiency, motor can be free from fatigue under long-working hours.

* Torque Accuracy + - 5%
