Lever Start Type, 0.49-4.41N.m
|
Model No. |
Torque Range±3% |
Unloaded Speed ±10% (r.p.m.) |
Available Screw |
Net Weight |
Overall Length |
Power Source |
Power Consumption |
Bit Type |
||||||||
|
Machine Screw(ø) |
Tapping Screw(ø) |
|||||||||||||||
|
Kgf-cm |
lbf-in |
N.m |
High |
Low |
mm |
in |
mm |
in |
g |
lb |
mm |
in |
||||
|
Lever start type |
||||||||||||||||
|

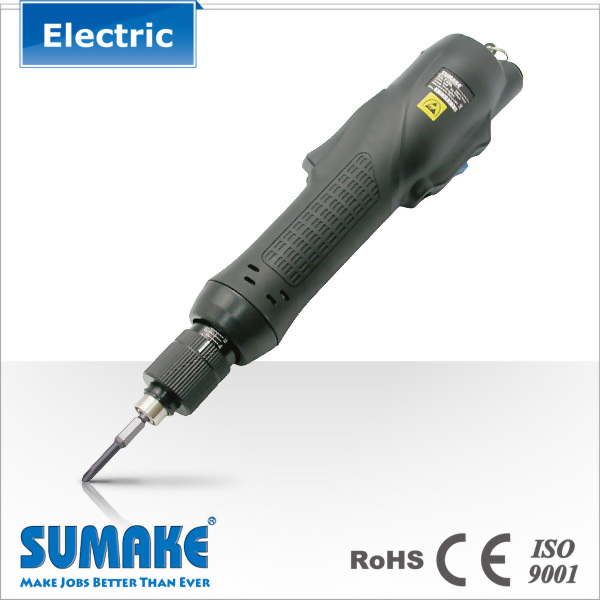

EA-712LH |
5-12 |
4.34-10.42 |
0.49-1.18 |
2000 |
- |
2.3-3.5 |
0.09-0.14 |
2.3-3.0 |
0.09-0.12 |
700 |
1.54 |
269 |
10.6 |
DC32V |
55W |
A HEX 5mm
B HEX6.35mm
|
|
EA-722L |
6-22 |
5.21-19.1 |
0.59-2.16 |
1000 |
700 |
2.6-4 |
0.1-0.16 |
2.6-3.5 |
0.1-0.14 |
700 |
1.54 |
269 |
10.6 |
DC24V/32V |
55W |
|
|
EA-730L |
10-30 |
8.68-26.04 |
0.98-2.94 |
750 |
520 |
3-5 |
0.12-0.2 |
3-4.5 |
0.12-0.18 |
700 |
1.54 |
269 |
10.6 |
DC24V/32V |
55W |
|
|
EA-730LH |
10-30 |
8.68-26.04 |
0.98-2.94 |
1000 |
- |
3-5 |
0.12-0.2 |
2.6-4 |
0.1-0.16 |
700 |
1.54 |
269 |
10.6 |
DC32V |
55W |
|
|
EA-745L |
15-45 |
13.02-39.06 |
1.47-4.41 |
530 |
350- |
4-6 |
0.16-0.24 |
4-5 |
0.16-0.2 |
700 |
1.54 |
269 |
10.6 |
DC24V/32V |
55W |
|
|
Push to start type |
||||||||||||||||
|
EA-712PH |
5-12 |
4.34-10.42 |
0.49-1.18 |
2000 |
- |
2.3-3.5 |
0.09-0.14 |
2.3-3.0 |
0.09-0.12 |
700 |
1.54 |
269 |
10.6 |
DC32V |
|
A HEX 5mm
B HEX6.35mm |
|
EA-722P |
6-22 |
5.21-19.1 |
0.59-2.16 |
1000 |
700 |
2.6-4 |
0.1-0.16 |
2.6-3.5 |
0.1-0.14 |
700 |
1.54 |
269 |
10.6 |
DC24V/32V |
|
|
|
EA-730P |
10-30 |
8.68-26.04 |
0.98-2.94 |
750 |
520 |
3-5 |
0.12-0.2 |
3-4.5 |
0.12-0.18 |
700 |
1.54 |
269 |
10.6 |
DC24V/32V |
|
|
|
EA-730PH |
10-30 |
8.68-26.04 |
0.98-2.94 |
1000 |
- |
3-5 |
0.12-0.2 |
2.6-4 |
0.1-0.16 |
700 |
1.54 |
269 |
10.6 |
DC32V |
|
|
|
EA-745P |
15-45 |
13.02-39.06 |
1.47-4.41 |
530 |
350- |
4-6 |
0.16-0.24 |
4-5 |
0.16-0.2 |
700 |
1.54 |
269 |
10.6 |
DC24V/32V |
|
|
