Automatic Screw Feeder-screw head sizes from 1.2 - 9.5 mm
♦ Made with Industrial Brushless Motors.
♦ Adjustable rail fits screw head sizes from 1.2 - 9.5 mm and screw lengths from 1 - 15 mm.
♦ Horizontal linear feeding system increases access to screw head.
♦ Integrated screw counting and screw shortage warning systems.
♦ PCB signal output allows full production line integration.

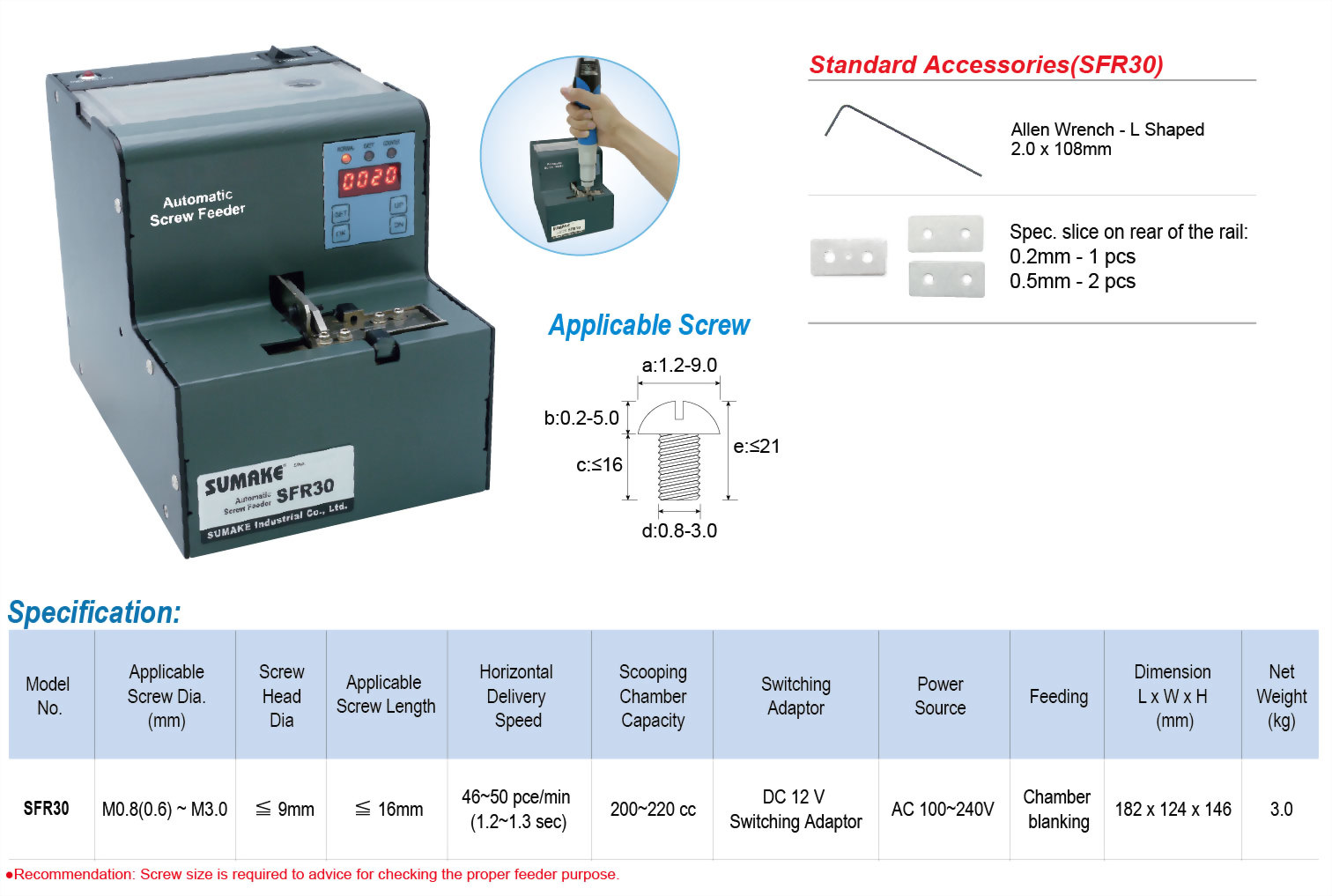

SFR30 / Automatic Screw Feeder-screw head sizes from 1.2 - 9.5 mm
|
Model No. |
Applicable Screw Dia. (mm) |
Screw Head Dia.(mm) |
Applicable Screw Length (mm) |
Horizontal Delivery Speed |
Scooping Chamber Capacity |
Switching Adaptor |
Power Source |
Feeding |
Size L x W x H (mm) |
Weight (kg) |
|
SFR20 |
M0.8(0.6)~M2.0 |
1.2~6.5 |
1.0~8 |
42~90 pcs/min (0.67~1.43 Sec) |
100~120 cc |
DC 12 V Switching Adaptor |
AC 100~ 240V |
Chamber blanking |
159 x 82 x 117 |
1.5 |
|
SFR20M |
M0.8 ~ M2.0 |
1.2~6.5 |
1.0~8 |
42~90 pcs/min (0.67~1.43 Sec) |
100~120 cc |
DC 12 V Switching Adaptor |
AC 100~240V |
Chamber blanking |
159 x 82 x 117 |
1.5 |
|
SFR30 |
M0.8(0.6)~M3.0 |
1.2~9.5 |
1.0~15 |
46~50 pcs/min (1.2~1.3 Sec) |
200~220 cc |
DC 12 V Switching Adaptor |
AC 100~240V |
Chamber blanking |
182 x 124 x 146 |
3.0 |
