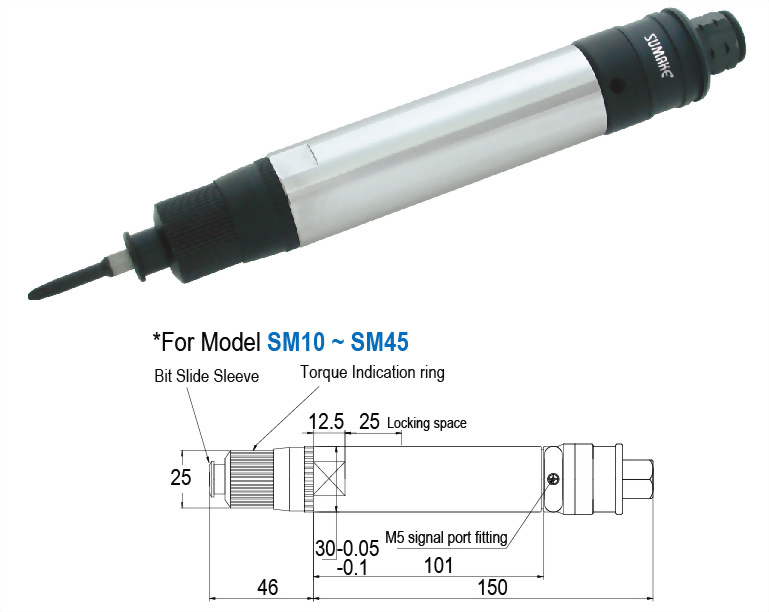

Air Nutrunner, Forward Type (Immediate and Automatic air shut-off)
Air Nutrunner Air Start Shut-off
|
Model No. |
Free Speed |
O.A.L. (mm) |
Dia (mm) |
Air Hose Bore |
Air consumption (m³/min) |
Torque Range |
Vibration Level (ms²) |
Standard Deviation (%) |
Fastening Capacity |
||||
|
6.0kg/cmᶾ |
5.0kg/cmᶾ |
Nm |
Kgf-cm |
Machine Screw Dia. |
Tapping Screw Dia. |
||||||||
|
T |
2T |
||||||||||||
|
SM10 |
1000 |
196 |
30 |
5.0 |
6.35 |
0.20 |
0.05-0.2 |
0.5-2 |
<1.0 |
±3 |
M1.0-M2.2 |
M1.1-M1.7 |
|
|
SM20 |
1000 |
196 |
30 |
5.0 |
6.35 |
0.20 |
0.1-0.8 |
1-8 |
<1.0 |
±3 |
M1.7-M3.3 |
M1.3-M2.7 |
|
|
SM30 |
1800 |
196 |
30 |
5.0 |
6.35 |
0.28 |
0.3-1.7 |
3-17 |
<1.0 |
±3 |
M2.2-M4.2 |
M1.6-M3.2 |
|
|
SM35 |
2200 |
196 |
30 |
5.0 |
6.35 |
0.28 |
0.3-2 |
3-20 |
<1.0 |
±3 |
M2.4-M4.5 |
M2.0-M3.5 |
|
|
SM40 |
1000 |
196 |
30 |
5.0 |
6.35 |
0.28 |
0.5-3 |
5-30 |
<1.0 |
±3 |
M2.8-M5.0 |
M2.3-M4.0 |
|
|
SM45 |
800 |
196 |
30 |
6.35 |
8.0 |
0.30 |
0.8-4 |
8-40 |
<1.0 |
±3 |
M3.0-M5.7 |
M2.7-M4.4 |
|
|
Model No. |
Free Speed (r.p.m.) |
O.A.L. (mm) |
Dia (mm) |
Air Hose Bore |
Air consumption (m³/min) |
Torque Range |
Vibration Level (ms²) |
Standard Deviation (%) |
Fastening Capacity |
|||
|
6.0kg/cmᶾ |
5.0kg/cmᶾ |
Nm |
Kgf-cm |
Machine Screw Dia. |
Tapping Screw Dia. |
|||||||
|
T |
2T |
|||||||||||
|
SM48 |
1700 |
228 |
40 |
8.0 |
9.5 |
0.55 |
0. 5-4.5 |
5-45 |
<2.5 |
±3 |
M2.8-M5.8 |
M2.3-M4.7 |
|
SM50 |
1400 |
228 |
40 |
8.0 |
9.5 |
0.55 |
0.7-5 |
7-50 |
<2.5 |
±3 |
M2.9-M6.0 |
M2.6-M4.9 |
|
SM55 |
1000 |
228 |
40 |
8.0 |
9.5 |
0.55 |
0.7-6.5 |
7-65 |
<2.5 |
±3 |
M2.9-M6.4 |
M1.6-M3.2 |
|
SM60 |
550 |
228 |
40 |
8.0 |
9.5 |
0.55 |
1.5-9.5 |
15-95 |
<2.5 |
±3 |
M4.1-M7.0 |
M3.3-M6.0 |
|
SM65 |
300 |
228 |
40 |
8.0 |
9.5 |
0.55 |
3-18 |
30-180 |
<2.5 |
±3 |
M5.0-M9.3 |
M4.0-M7.2 |
|
SM68 |
250 |
228 |
40 |
8.0 |
9.5 |
0.55 |
5-28 |
50-280 |
<2.5 |
±3 |
M6.0-M11.0 |
M4.9-M8.7 |
