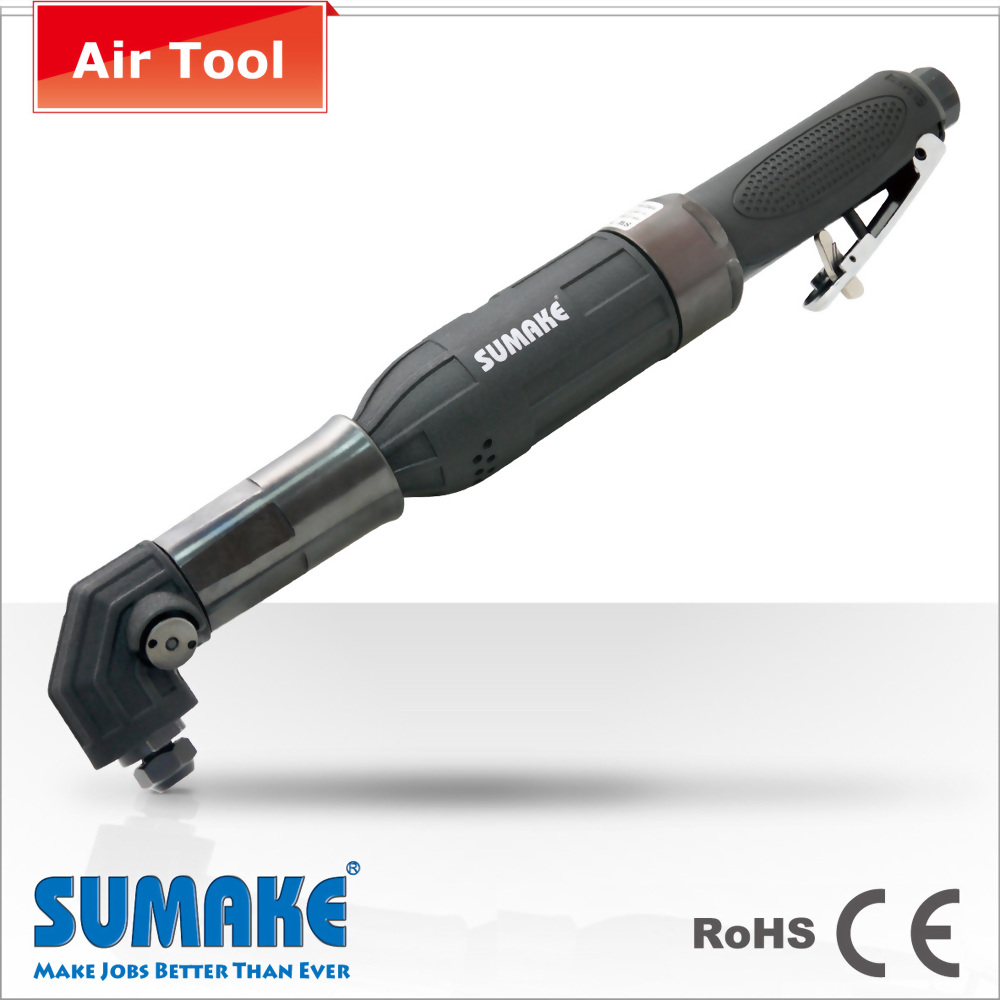

1/4" Powerful Industrial Lever/Roll Type Extended Air Angle Die Grinder
Model :
ST-7438(M); ST-7438G(M)
1/4" Powerful Industrial Lever/Roll Type Extended Air Angle Die Grinder
MODEL #ST-7438(M)
MODEL #ST-7438G(M)
* 2015 New Product *
|
MODEL # |
ST-7438(M); ST-7438G(M) |
|
Motor (HP) |
0.9 |
|
Collet Size |
1/4” (6 mm) |
|
Free Speed |
15,000 rpm |
|
Length |
ST-7438(M): 15” (380 mm) ST-7438G(M): 13.19” (335 mm) |
|
Air Inlet (PT) |
3/8” |
|
Air Hose (I.D.) |
3/8” |
|
Air Consumption |
19 cfm (540 l/min) |
|
Net Weight |
4.4 lbs (2 kgs) |
Packing: 10 pcs/Ctn/22 kgs/1.6 Cuft
Brochure
Features:
- Super powerful 0.9 HP motor.
- Magnesium-Aluminum Alloy Housing.
- Extended Air Rotary Tool (1” Shaft).
- Safety trigger to prevent accidental start up (for lever type).
- Spindle lock is easy for the disc replacement.
- The cylinder is durable and longer lifespan.
- Increase gear strength, consequently the abrasive life is improved.
- Sales only in exclusive of Germany.
Application
- The reduced thickness of the angle head makes it easier to operate in a limited room.
- It is suitable for industrial production line.
