  • 1/2" Industrial Super Duty Composite Air Angle Impact Wrench

1/2" Industrial Air Angle Impact Wrench

Model : ST-5245


Angle head is the most effective tool to tighten up the object in a narrow space where it’s difficult to reach, such as agricultural machinery, chassis, and so on.

Genius Design on Forward / Reverse Switch
-One hand switch over forwarded and reversed.
-Two stages of the torque setting in forward enable to control the torque properly without over-tightening.
-Powerful reversing torque continuously; the operators have maximum torque to remove the fasteners.
Precise Machine Bevel Gear
-Transmission smooth.
-Noise level reduced.
-Extended lifespan.

New & Improved Rear Exhaust through the Muffler
-Rear exhaust created to discharge air away from the work environment.
-Optional air hose to lessen the sound of exhaust is available.
Jumbo Hammer
-Powerful torque & Instant high torque output.




♦ Ideal for using into the tightest and narrowest of workspaces.

st-c5245-application.jpg st-c5245-application2.jpg


ST-5235 / ST-5245 / Industrial Super Duty Composite Pneumatic Angle Impact Wrench

Model No.

Square

Drive

(inch)

Free

Speed

(r.p.m)

Max. Torque

Air

Inlet

(PT)

Air

Hose

(ID)

Air

Consumption

Overall

Length

Net Weight

Packing

Pcs/Ctn/G.W./Cuft

(kgs)

ft-lb

N.m

cfm

l/min

inch

mm

lbs

Kgs

ST-5235

3/8

7,000

160

217

1/4"

3/8"

14

400

13.4

341

3.97

1.80

10/Ctn/21/1.13'

ST-5245

1/2

7,000

180

244

1/4"

3/8"

14

400

13.4

341

3.97

1.80

10/Ctn/21/1.13'


Related Products

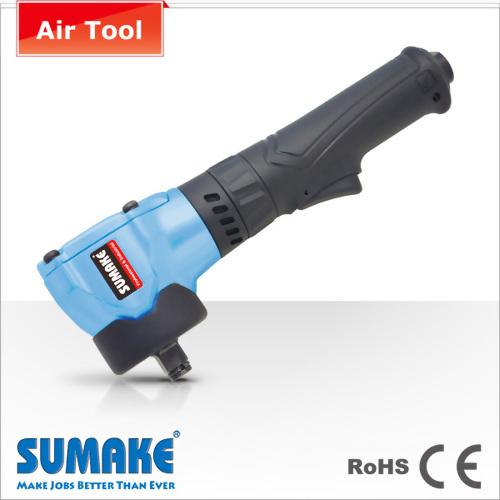

1/2" Air Angle Impact Wrench- Gearless Type

Model : ST-IW4140

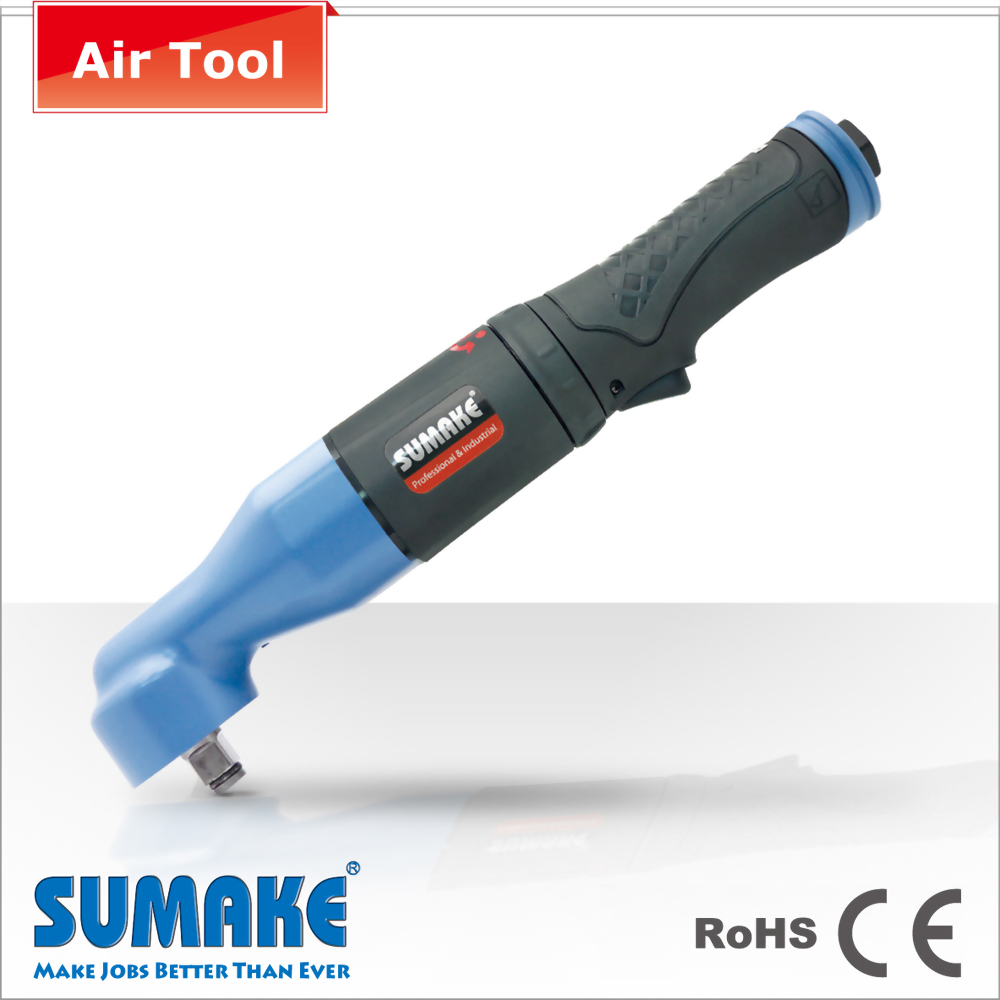

3/8" Industrial Air Angle Impact Wrench
