How to properly use a Pneumatic Body Saw?

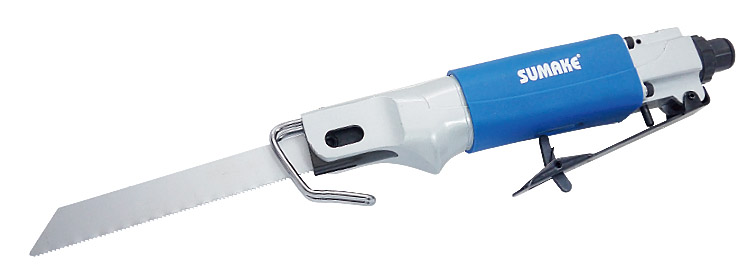

A pneumatic body saw is a powerful and precise cutting tool commonly used in automotive repair, sheet metal fabrication, and industrial applications. It is ideal for cutting through metal panels, plastics, and composite materials. This guide explains how to safely and efficiently operate a pneumatic body saw, using the SUMAKE ST-M5034H as an example.

1. Preparation Before Use

-Check the Tool and Accessories:

✅ Inspect the saw body for any visible damage.

✅ Ensure the blade is correctly installed and tightened.

✅ Choose the appropriate blade type depending on the material (e.g., TPI – teeth per inch – for metal, plastic, etc.).

✅ Verify that the air compressor pressure is stable; recommended pressure: 6.3 Bar (90 PSI).

-Personal Protective Equipment (PPE):

✅ Safety goggles

✅ Hearing protection

✅ Cut-resistant gloves

✅ Workwear and anti-slip shoes

2. Operating Instructions

-Connect the Air Supply:

✅ Attach the quick-connect air hose to the inlet port securely.

✅ Do not press the trigger until you are ready to cut and the area is clear.

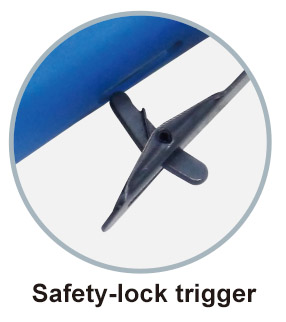

(Choose the body saw has safety-lock tridder design could prevent accidental start up.)

-Align and Position the Tool:

✅ Position the blade precisely over the cutting line.

✅ If possible, secure the workpiece with a clamp to prevent movement.

✅ Hold the saw firmly with both hands for control.

-Start Cutting:

✅ Gently press the safety trigger (as on the SUMAKE ST-M5034H model) to activate the blade.

✅ Move the saw steadily along the cutting line. Avoid forcing it, as it may damage the blade or the tool.

✅ For thicker materials, pause periodically to allow the blade to cool.

3. Post-Use Maintenance

-Shut off and depressurize:

✅ Turn off the air compressor and press the trigger to release any residual air pressure.

-Clean the tool:

✅ Use a dry cloth or air gun to remove metal shavings and dust.

✅ Apply a few drops of pneumatic tool oil into the air inlet after use to keep internal parts lubricated.

-Inspect the blade:

✅ Check for dullness, chipping, or warping. Change a new blade if necessary.

4. Safety Precautions

✅ Never place your hand near the blade path during operation.

✅ Always disconnect the air hose when the tool is not in use to prevent accidental start-up.

✅ Regularly inspect air hoses and fittings for leaks or damage.

✅ Avoid using the tool in wet, flammable, or extremely hot environments.

5. Applications

-A pneumatic body saw is best suited for:

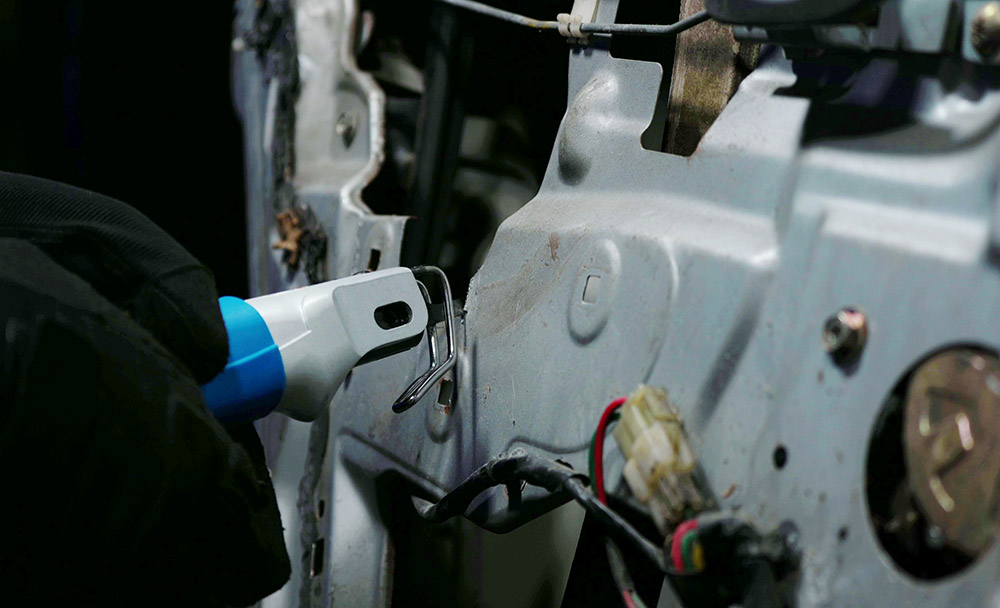

✅ Automotive body repair (e.g., cutting through doors, panels, roofs, wheel wells)

✅ Sheet metal work

✅ Cutting pipes, plastic panels, or fiberglass

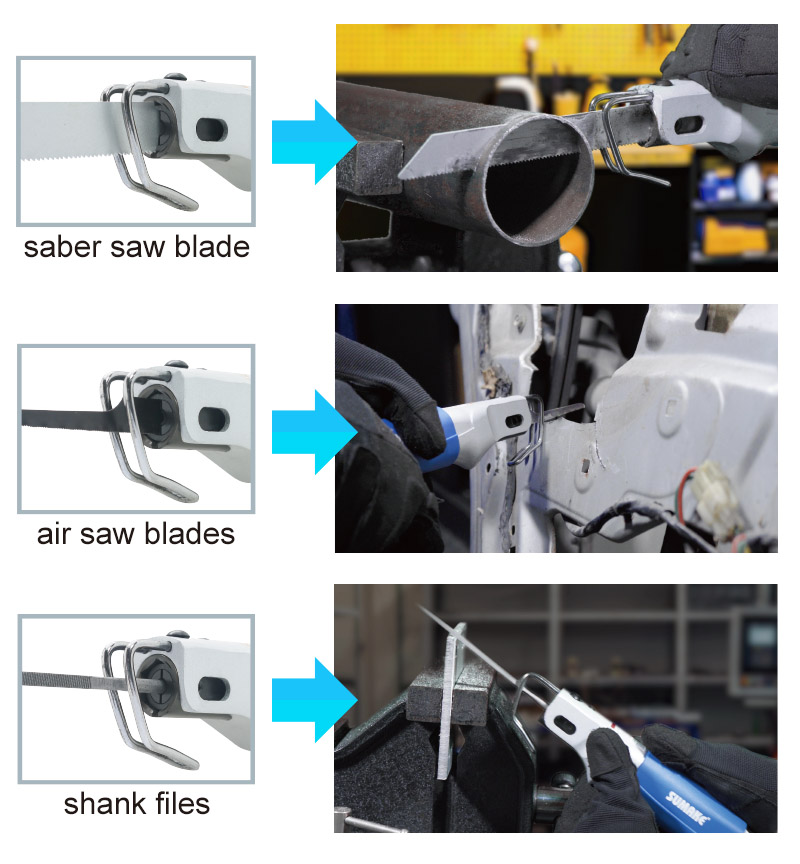

✅ Replace the file head, can be used to grind the burr head.

SUMAKE Pnuematic Body Saw: https://www.sumake.com/c-174.htm
