In modern manufacturing environments, especially in assembly lines involving repetitive fastening operations, torque reaction is a common challenge. Tools like screwdrivers or nutrunners often generate significant torque, which—if unmanaged—can lead to operator fatigue, quality issues, or even injury. To solve this, Telescopic Torque Arms offer a highly effective solution.

1.What Is a Telescopic Torque Arm?

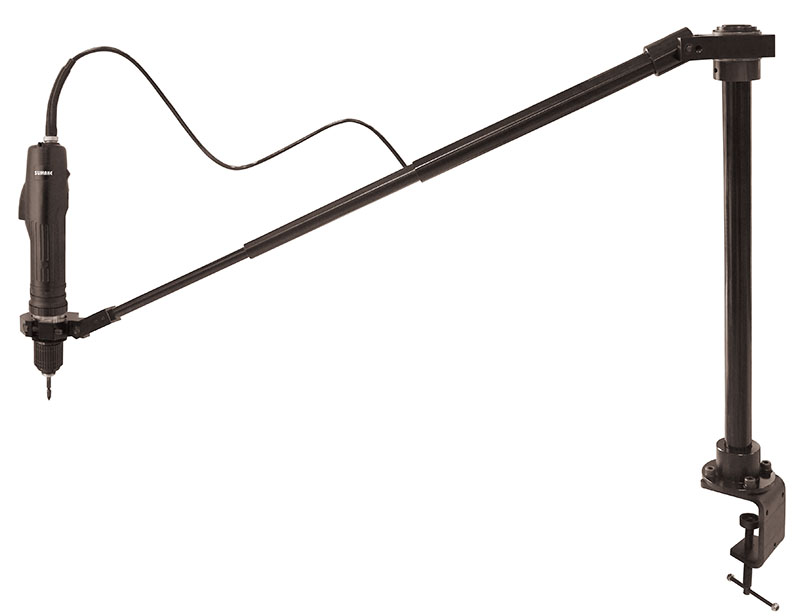

A Telescopic Torque Arm is a mechanical assist device designed to absorb and control the torque reaction generated by power tools during fastening tasks. It features an extendable (telescopic) arm structure, which allows it to reach various working positions while maintaining stability and ergonomic support.

The arm can extend and retract smoothly, adapting to different working distances and angles, making it suitable for vertical, horizontal, or even overhead applications.

2.Major Features & Advantages

✅Torque Reaction Absorption
The main purpose of a torque arm is to prevent torque forces from transferring to the operator’s hand or wrist, thus significantly reducing the risk of repetitive strain injuries.

✅Improved Ergonomics
By supporting the weight of the tool and managing torque reaction, the telescopic arm allows the operator to work longer with less fatigue and better posture.

✅Extended Reach and Flexibility
The telescopic function enables coverage of a wider working area without moving the tool or repositioning the operator frequently.

✅Enhanced Accuracy and Consistency
Keeping the tool aligned and stable during fastening improves torque accuracy, which is essential for ensuring product quality and reducing rework.

✅Extend Tool Life and Maintenance
Minimizing torque shock to the operator also reduces stress on the tool’s internal mechanism, potentially extending its service life.

3.Advanced Model of Similar Equipment

✅Position Control Torque Reaction Arm:

Optimize your production with precise screw control. The system locks screw positions in sequence, ensures every screw reaches its target torque, and monitors for errors or exceptions. Complete reporting allows easy review and quality assurance.

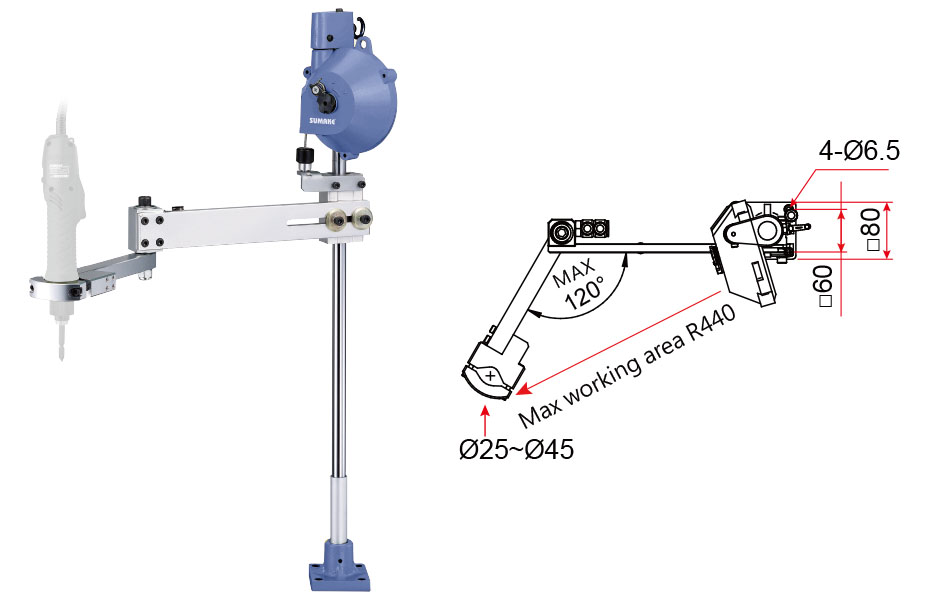

✅Torque Reaction Arm
Has a range of work radius from the spindle base. With 365 degree rotation, provides big work area. Meanwhile, its bendable arm design provide less conflict with other operator.

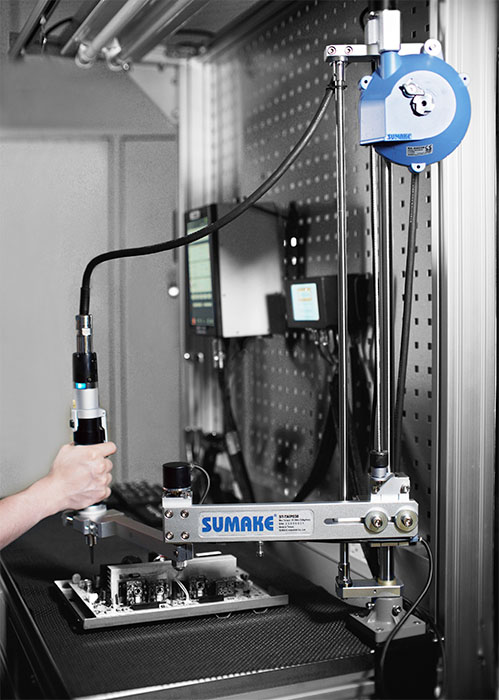

4.Common Applications

✅Automotive assembly lines

✅Electronics manufacturing

✅Appliance production

✅Aerospace component assembly

✅Heavy machinery maintenance

Wherever consistent torque control and operator safety are required, a telescopic torque arm can play a critical role.

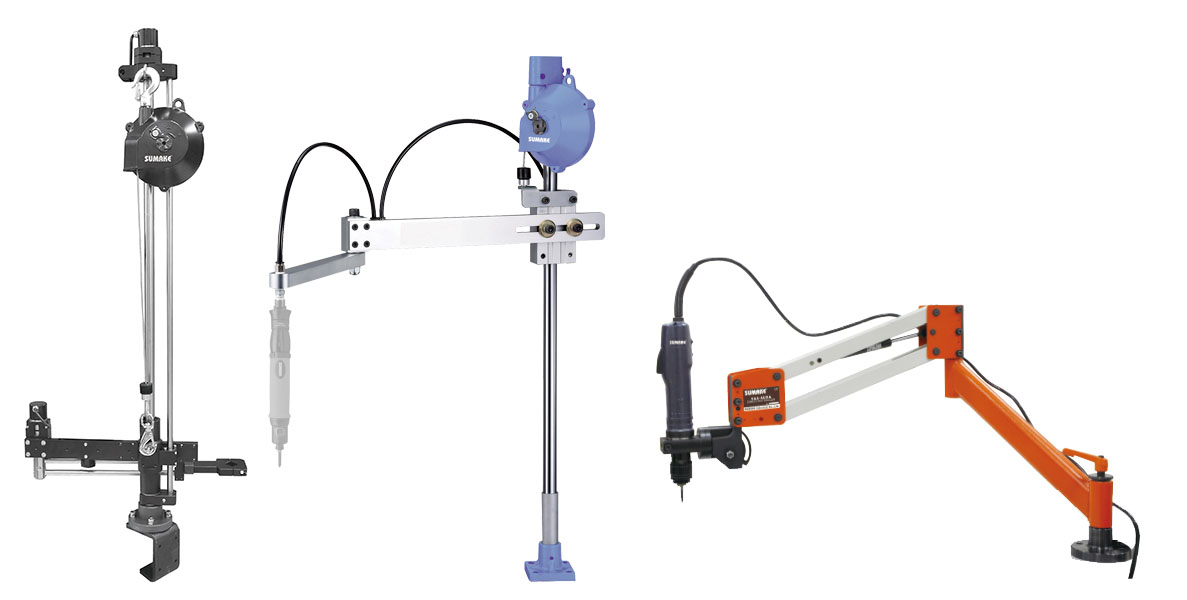

5.Types and Configurations

✅Depending on the application, telescopic torque arms may come in different mounting and motion types:

✅Bench-mounted or floor-mounted

✅Vertical, horizontal, or articulated movement

✅Compatible with pneumatic, electric, or battery-powered tools

✅Optional balancing mechanisms (spring or air cylinders)

6.Conclusion

A Telescopic Torque Arm is not just an accessory—it’s an investment in productivity, quality, and worker well-being. In industries where repetitive tightening is essential, implementing a torque arm system can reduce injuries, boost output, and enhance overall operation efficiency.

Learn more about SUMAKE's  Reaction Torque Arm
