An oil pulse wrench, also known as a hydraulic pulse tool, is a type of power tool that uses oil pressure and pulse technology to deliver torque. It is commonly used in industrial assembly applications where torque accuracy, efficiency, and operator comfort are critical.

1. How It Works

-An oil pulse wrench consists of a motor (usually pneumatic or brushless electric), an oil chamber, and a pulse mechanism. When activated, the motor drives the pulse unit, which compresses oil in the chamber to generate a series of hydraulic pulses. These pulses deliver torque in short bursts, reducing the reaction force transmitted to the user.

2. Main Features

✅Low Reaction Force
Unlike traditional impact wrenches, oil pulse wrenches absorb some of the torque shock, reducing stress on the user’s wrist and arm.

✅High Torque Stability
The tool delivers consistent and repeatable torque output, making it ideal for applications that require precise fastening.

✅Lower Noise Level
The oil-cushioned pulse mechanism generates significantly less noise compared to air impact tools.

✅Best for Medium Torque Applications
Typically used for torque ranges between 20 to 200 Nm, suitable for automotive, appliance, and electronic assembly lines.

✅Maintenance Required

Since the tool uses hydraulic oil, regular oil replacement is needed to maintain performance.

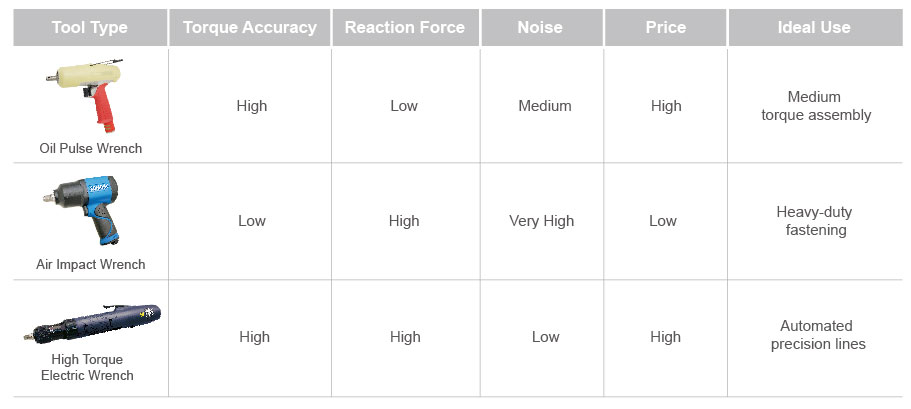

3. Comparison with Other Tools

4. Applications:

✅Automotive assembly lines (e.g., doors, chassis, interiors)

✅Home appliance manufacturing (e.g., air conditioners, washing machines)

✅Electronics assembly (e.g., servers, telecom enclosures)

✅Machinery casing or modular frame fastening

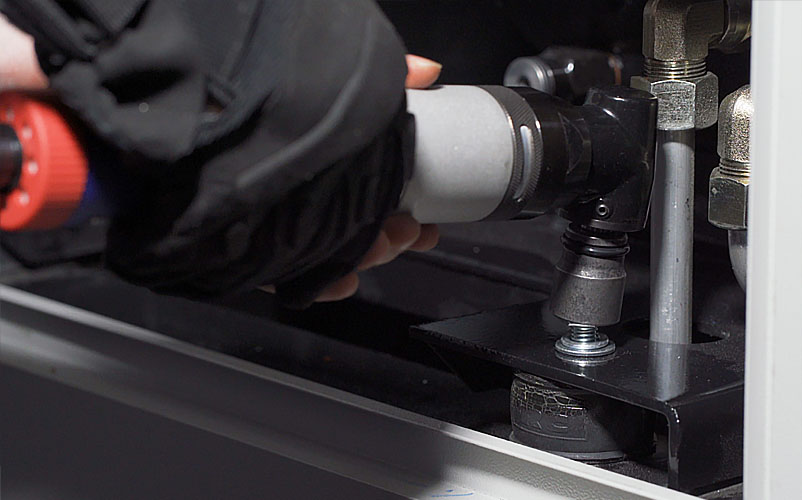

▲Automotive assembly lines

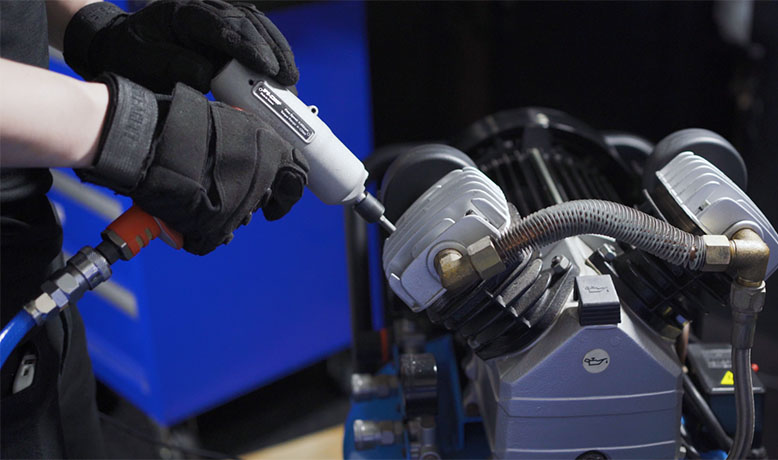

▲Used in air conditioners

5. Key points to consider when purchasing

-When selecting an oil pulse wrench, consider:

✅Required torque range and precision

✅Operating frequency and duty cycle

✅Screw size and material type

✅After-service, and parts availability......

6. Which type of Oil Pulse Wrench do you need?

-Basically, Oil pulse wrench can be divided into two types: Pistol-type and straight type. The straight type also includes angled types. Which type of tool to choose depends on the location of the operation. If it is used in a small space, a straight tool is recommended. When the Pistol-type tool is used to fasten the workpiece on the vertical surface, the user experiences improved ergonomics

7. Conclusion

An oil pulse wrench is a professional-grade tool that strikes a balance between efficiency, accuracy, and operator ergonomics. Widely used in precision assembly and medium-torque fastening jobs, it helps enhance productivity, reduce fatigue, and improve workplace safety. Choosing the right pulse wrench for your task can lead to better performance and long-term cost savings.
