0.5-6.5 kgs adjustable PU Hose tool Balancer

Model : SA-22015T8

0.5~6.5 kgs adjustable PU Hose tool Balancer
Model #SA-22015T8, SA-22025T8, SA-22035T8, SA-22050T8, SA-22065T8


Model No.

Capacity

(kg)

Net

Weight

(kg)

Travel

(m)

Hose

Type

Hose Dia.

(mm)

Air Inlet

Packing

Pcs/Ctn/G.W./Cuft

(kgs)

SA-22015T8

0.5-1.5

2.2

1.3

PU Braid

8x12

3/8

6Pcs/Ctn/14.8/2.5’

SA-22025T8

1.5-2.5

2.3

1.3

PU Braid

8x12

3/8

6Pcs/Ctn/15.4/2.5’

SA-22035T8

2.5-3.5

2.4

1.3

PU Braid

8x12

3/8

6Pcs/Ctn/16/2.5’

SA-22050T8

3.5-5.0

2.4

1.3

PU Braid

8x12

3/8

6Pcs/Ctn/16/2.5’

SA-22065T8

5.0-6.5

2.5

1.3

PU Braid

8x12

3/8

6Pcs/Ctn/16.6/2.5’

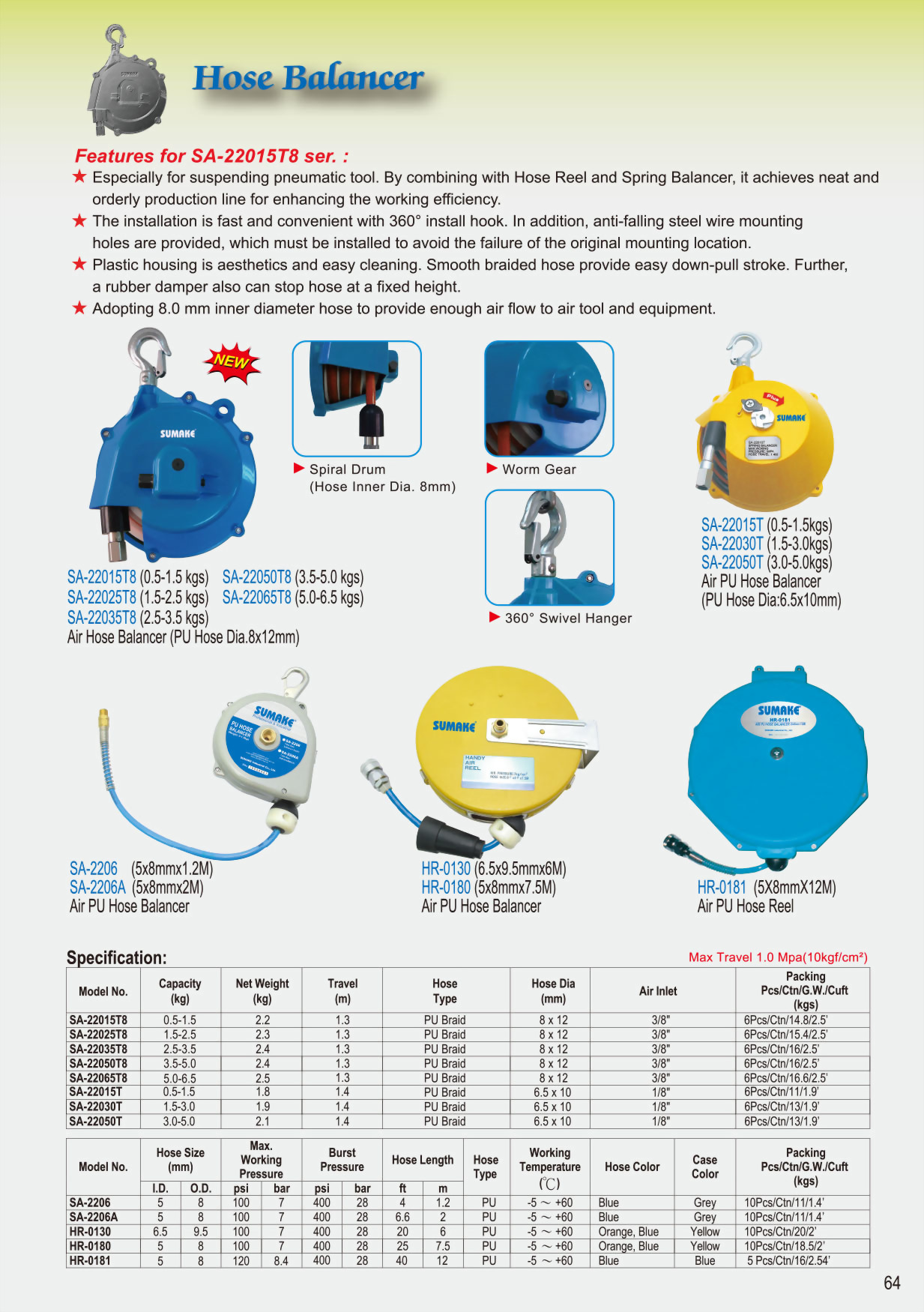

Brochure


Features:


  • Especially for suspending pneumatic tool. By combining with Hose Reel and Spring Balancer, it achieves neat and orderly production line for enhancing the working efficiency.
  • The installation is fast and convenient with 360 degrees install hook. In addition, anti-falling steel wire mounting holes are provided, which must be installed to avoid the failure of the original mounting location.
  • Plastic housing is aesthetics and easy cleaning. Smooth braided hose provide easy down-pull stroke. Further, a rubber damper also can stop hose at a fixed height.
  • Adopting 8.0 mm inner diameter hose to provide enough air flow to air tool and equipment.
