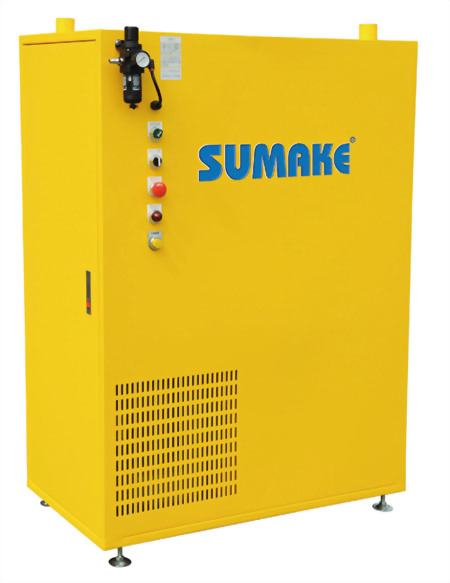

58L CENTERALIZED DUST REMOVAL SYSTEM
58L CENTERALIZED DUST REMOVAL SYSTEM
Model# EP-60580
* The standard model does not include the air control unit.
Model No.
Voltage (v)
Consum. Power (W)
Max. Vacuum (mm H2O)
Air Flow (m3/min)
Drum Capacity (L)
Drum Material
LxWxH
(cm)
Weight
kg
lb
EP-60580
380 (3P) 50/60Hz
4,600 ± 15%
3,300 ±15%
6.2
58
Stainless
100x68x144
170
374.8

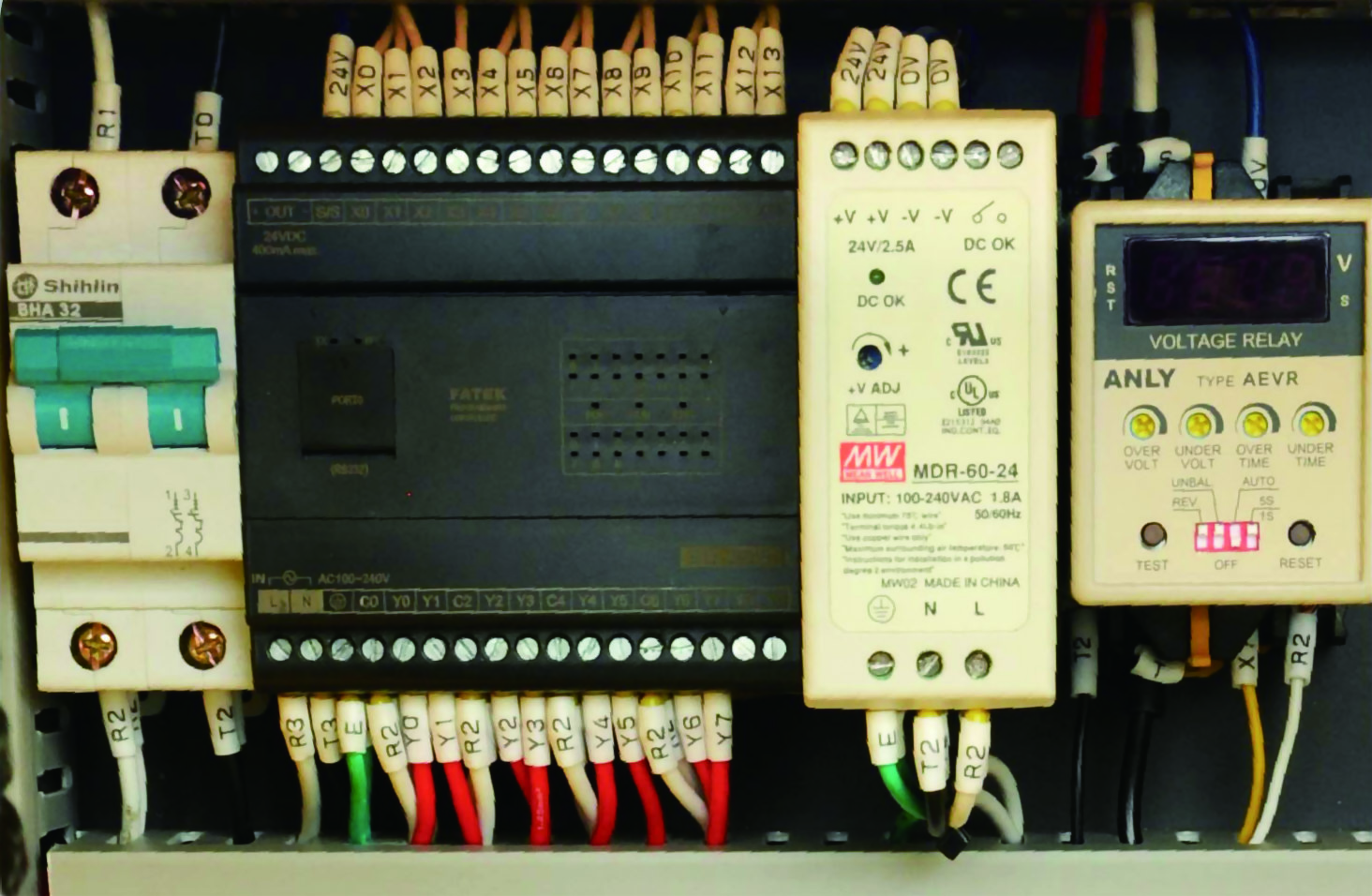

> Control System
Features
-
Specially designed [Vacuum suction automatic blocking system] make sure the suction supply only being used for the sander, increase suction effect.
-
Specially designed [automatic and manual filter system] to clean filter and improve filter life circle helps maintain maximum suction.
- Specially designed [motor protection systems] to prevent the shortage on the motor voltage and also instantaneous encounter in use high voltage that could resulting in damage to the motor and circuit board.
- The automatically starting option on the Host, could set up the shutdown time and automatic filtering.
- Emergency switch that could cut down all the power supply when need it.
- Barrel with positioning placement point, after the dust door is closed, the barrel group is automatically lowered to secure the close space.
- High pressure blower motors, excellent for dust collect, high static pressure, great air flow with low noise and strong suction power.
-
Special screening programs for industrial grade high-density powder, enhance motor life cycle.
- Reduce the environmental pollution, improve the cleanliness for factory.
- Can use up to 4 people at the same time, however, overloading will reduce the suction power.
- Offer a massive 58L stainless steel barrel.
